Injection Molding Robot 1500 3000mm - China

3-Axis Injection Molding Robot Supplier Offers 3-Axis Injection Molding Robot, Travel (Up & Down) 1500-3000mm, for Injection Molding Machine (650-3200 Ton).

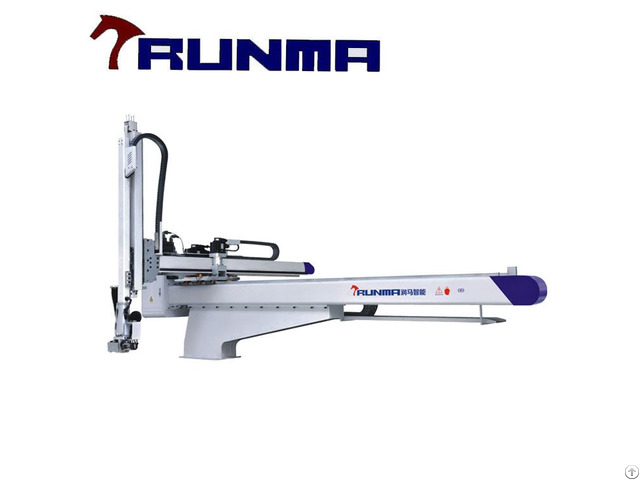

Runma 1500-3000 Series Large Size three axis full servo traversing robot arm is applicable to all types of horizontal injection machine ranging from 600 to 3000T for products take-out.

Vertical arm is telescopic type, with product arm, for two plate mold products take out.

Crosswise type adopts open without frame design, X-, Y-, Z-axis are all driven by AC servo motor, also, B and C axis can be added; Meanwhile, it can stack up at any points at X, Y, Z directions, and cut the runner by scissors driven and inset or embed the accessory by the cylinder.

Compared with crosswise adopts frame type robot, this robot is not restricted by product size, particularly adapted to the product whose mold has a loose-core fixture on the top.

Back-installed electric box design improves the whole shock resistance performance and stability, reduces the electronic fault.

Wheel gear lateral plate structure and constant overturn torque makes tools work well.

Cylinder's service life is longe because the lateral cylinder piston rod does not skew.

Model A B C D E F G H I J K L M N

RN 1500W(S3) 2180 3550 880 2200 2400 \ 200 840 530 \ 1400 \ 180 100

RN 1700W(S3) 2300 3950 2600 2400 1400

RN 2000W(S3) 2480 4250 2900 2700 1800

RN 2500W(S3) 2800 5200 950 3700 3200 960 650 2150

RN 3000W(S3) 3100 5700 4200 3700 2250 Model Applied to injection molding machine (ton) Travel (mm) Side posture angle (degree) Max load (including fixture) Time (sec) Driven way Working pressure (kgf/cm2) Air consumption (nl/cycle) Power Power consumption NW (kg)

up and down pull out cross traveling take-out empty loop

RN 1500W(S3) 650-1000 1500 200-1400 2200 90 7 3 15 x, y, z AC servo motor 5-7 20 AC220±10V 50/60HZ 5 820

RN 1700W(S3) 800-1250 1700 200-1400 2600 16 890

RN 2000W(S3) 1200-1600 2000 200-1800 2900 18 1200

RN 2500W(S3) 1500-2200 2500 200-2150 3700 10 3.5 20 22 6.5 1450

RN 3000W(S3) 1800-3200 3000 200-2250 4200 10-30 22 1850
