Horizontal Double Ribbon Blender Powder Liquid Mixer - China

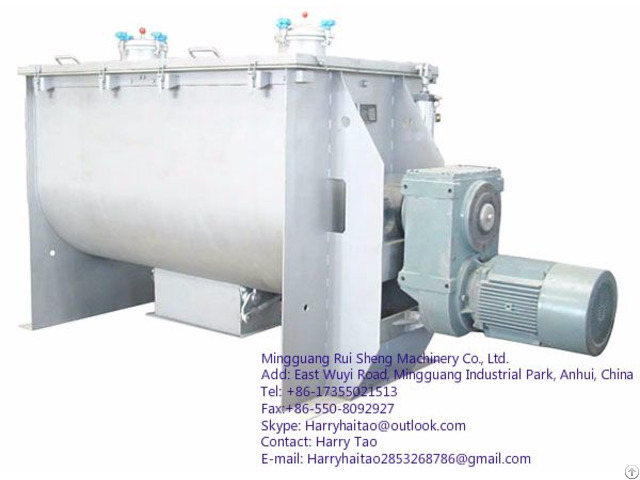

Descriptive abstract: WLDH The Horizontal Ribbon Mixer consist of U-Shape tank, spiral and drive parts.

The spiral is dual structure.

Outer spiral make the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing.

Our WLDH series Ribbon mixer can mix many kinds material especially for the powder and granular which with stick or cohesion character, or add a little liquid and paste material into powder and granular material.

The mixture effect is high.

The cover of the tank can be made as open in order to cleaning and change parts easily.

Main features: 1 - This mixer wide application for mixing material, for paste mixing even; keep granule mixing intact 2 - Material proportion different 1: 1000 ~5000 perfectly mixing.

3 - The ribbon of the mixer can make the material mixed with more high speed and uniformity in short time.

WLDH horizontal ribbon mixer is used for application to, power and power; granule and granule; powder and a few liquid mixing; it is widely used in food, chemical industry, pharmaceutics, feed stuff, plastic, building material and so on; Customizing according to client’s specific requirement, it can be from 304, 316L, 321 and carbon steel etc.

it can be according to GMP standard, too.

WLDH series mixer with Horizontal tank, single shaft with dual spiral symmetry circle structure.

The top cover of the U Shape tank has the entrance for material.

It can be also designed with spray or add liquid device according the customer’s needs.

Inside the tank there equipped the axes rotor which consist of, support and spiral ribbon.

Under the bottom of the tank, there has a flap dome valve (pneumatic control or manual control) of the center.

The valve is arc design that assure no material deposit and without no dead angle when mixing.

Reliable regular-seal prohibit the leakage between the frequent close and open.

The ribbon of the mixer can make the material mixed with more high speed and uniformity in short time.
