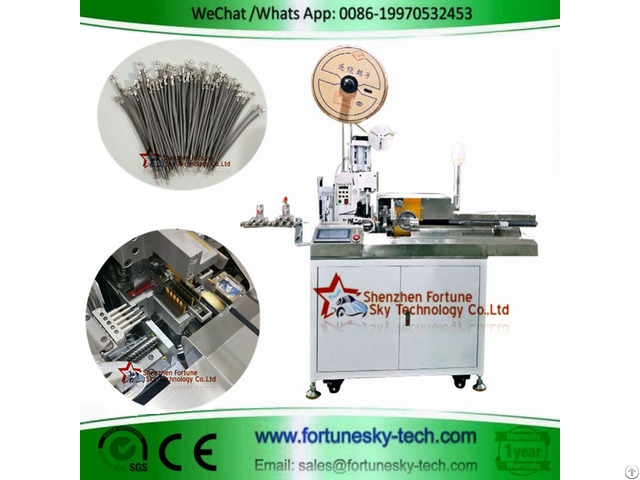

Fully Automatic Five Wires Stripping Crimping Twisting Tinning Machine - China

Fully automatic five wires one-end strip crimp one-end strip twist tinning machine is computerized numerical control debugging: knife size, cutting length, stripping length, flux depth, tin depth, all realize digital touch screen operation.

its functions: Wire cutting, single-end stripping, double-ends stripping, single-end crimping, single-end twisting, single-end tinning (optional opening and closing)

Feature:

1 - Computerized touch screen English/Chinese operation menu, easy to learn and use;

2 - Rapid replacement of process and materials, high efficiency, high precision, fast speed and convenient maintenance;

3 - The machine adopts servo control and five sets of servo motors (Mitsubishi Servo)

4 - Pneumatic components: solenoid valve + cylinder (Taiwan Airtac)

5 - Screw guide: Taiwan CPC/Hiwin

6 - Color Touch Screen: Kinco (Taiwan)

7 - Computerized numerical control debugging: knife size, cutting length, stripping length, flux depth, tin depth, all realize digital touch screen operation.

Specification:

Model No: HNW-835

Functions: Wire cutting, single-end stripping, double-ends stripping, single-end crimping, single-end twisting, single-end tinning (optional opening and closing)

Cutting length: 32mm-650mm (long wire can be customized)

Cutting accuracy: 0.2+/-0.02xL

Stripping length: 0.1mm-11mm

Wire diameter: 0.6mm-3.5mm

Tinning length: 1mm-11mm

Twisting length: 2mm-10mm

General wire diameter: AWG16-AWG32

Crimping Force: 2.0T Terminal Machine

Working speed:

cutting length 100mm, 6000 pcs/hour;

cutting length 220mm, 5200 pcs/hour

Air pressure: 0.5-0.7MPA

Detection device: crimping detection, wire missing detection, wire knotting detection, terminal presence or absence detection.

Blade material: high speed steel

Body size: 1500x800x1600mm

Body weight: 290KG

Auxiliary Device: terminal waste paper rewinding device

Power supply: AC220 single-phase 8A
