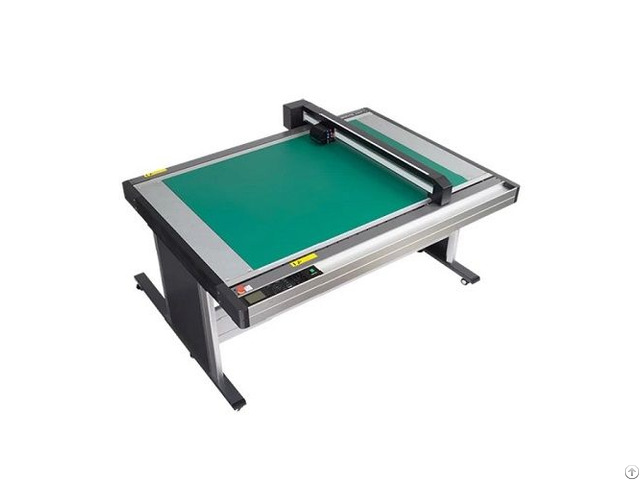

Flatbed Cutting Plotter - Taiwan

Model: FCX2000 Series

Model: GRAPHTEC FCX2000-60VC / FCX2000-120VC /FCX2000-180VC /FCX2000-120ES Description

Flatbed cutting plotter has been widely used in a variety of applications such as the prototyping of industrial materials, the small production runs and the post-processing of the on-demand printing.

It is able to run a half-cut and die-cutting in high-mix low-volume without the use of a cutting die at less cost and short delivery times.

FCX2000 series achieves high quality cutting with improving of the quality and accuracy by enhancing rigidity of the sliding mechanism and the driving system.

It is the high-end model of flatbed cutting plotter that has a high usability and productivity equipped with new functions.

Features:

There are four of the table size and the two media hold-down method, it is suitable for many applications.

-FCX2000-60VC, Vacuum Suction

-FCX2000-120VC, Vacuum Suction

-FCX2000-180VC, Vacuum Suction

-FCX2000-120ES, Electrostatic

Mark sensor

A set of tool for cutting heavy paper or cardboard is supplied.

Max.

Cutting Force: 1kg (able to cut heavy paper)

Max.

Cutting Speed: 400mm/s

Added offline (USB) operation enables users of all skill levels to easily process materials

Improved application Software – other advanced features is available via plug-ins and optional software for work efficiency.

Technical Data: Weight: -FCX2000-60VC: 76kgs approx.

(stand included, but pump (blower) for vacuum suction media hold-down system is not included.

)

-FCX2000-120VC: 99kgs approx.

(stand included, but pump (blower) for vacuum suction media hold-down system is not included.

)

-FCX2000-180VC: 116kgs approx.

(stand included, but pump (blower) for vacuum suction media hold-down system is not included.

)

-FCX2000-120ES: 93kgs approx.

(stand included.

)

External dimensions [W x D x H] (Approx.

): -FCX2000-60VC: 1344 x 1409 x 930mm(stand included)

-FCX2000-120VC: 1934 x 1409 x 930mm(stand included)

-FCX2000-180VC: 2534 x 1409 x 930mm(stand included)

-FCX2000-120ES: 1934 x 1409 x 930mm(stand included) Remark: This is to replace FC2230 & FC2200 and FC2240 & FC2250 which were discontinued.
