Fd 6th Screw Making Machine With Ce Two Rollers Thread Stainless Steel Bolt - China

price: 5980.00 Dollar US$

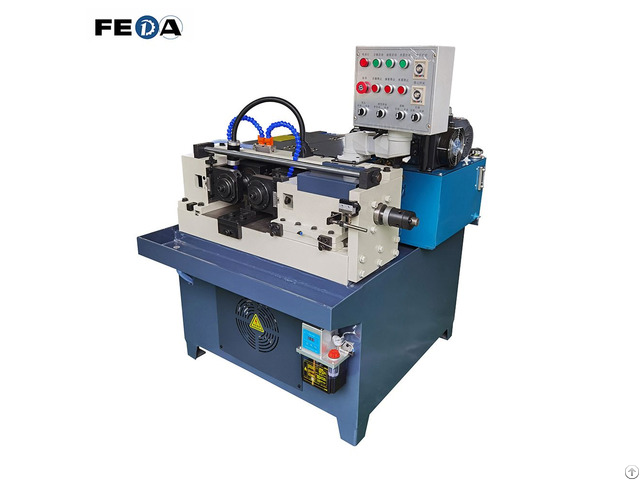

Fd 6th Screw Making Machine With Ce Two Rollers Thread Stainless Steel Bolt

Products Photos Catalog 6th Screw Machine Photos Catalog

1 - Automatic feeding with adjuatable brackets

2 - Speed is adjutable for different products

3 - 54mm hole diamter for SKD11/DC53 thread rolling dies 4 - Max.

Rolling pressure is about 60KN

5 - It is easy to operate and maintain the machine

6 - CE, ISO9001-2008 Specification

Working diameter 2-30mm

Thread pitch 0.4-3.0P

Thread length In feed & Through feed

Spindle speed 40rpm

Outside diameter of rolling die 140-160mm

Inside diameter of rolling die(keyway) 54mm

Thickness of rolling die 80mm

Min.

center distance between die spindles 120mm

Max.

center distance between die spindles 200mm

Machine motor 3KW

Hydraulic motor 1.5KW

Max.

rolling pressure 6T

Supply voltage 380V 3P 50Hz

Weight(reference) 750(KG)

Package Dimension(L*W*H)1250*1200 *1350 mm

Dimension(L*W*H) 1200*1150*1200 mm


Company Contact:


  • Phone: 17704032641

  • Address: Songgang, Baoan District, Shenzhen, China, shenzhen , guangdon , China

  • Email: Email


Published date: June 22, 2025

  • Business Description: We are a thread rolling machine manufacturer from China, thread rolling machine is our specialty product, we also deal in chamfering machines, tapping machines, vibrating bowl and automatic lathes and thread rolling wheel dies.
