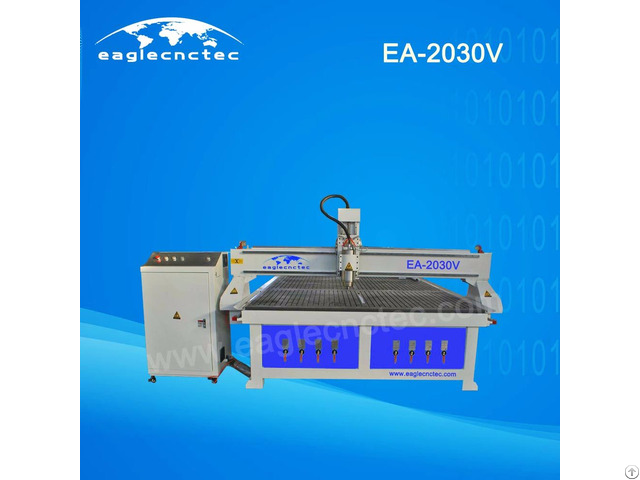

China 2030 Router Cnc Factory - China
price: 6000.00 Dollar US$
Working Size (X Y Z): 2000×3000×200 mm
Driving Motor: Stepping
Controller : DSP
Command: G-code
Max.
Traveling Speed: 35 m/min
Work-Holding: By Vac-sorb or Clamp, both available
Vacuum Pump: 5.5KW water ring, flow rate 230 CBM/hour
X Y Transmission: Rack and pinion transmission, HIWIN square linear guide way
Z Transmission Taiwan TBI rolling ballscrew, HIWIN square linear guide way
Spindle 4.5 kw, water cooling, 0-18000 rpm variable speed
Collet Size ER25, available diameter of cutter bits φ3.175-φ16mm
Working Power 380V/50-60Hz, 3 Phase 4 Wire
Max.
Power Consumption 14 KW
Net Weight 1600 KGS
Packing Plywood case suitable for sea shipment
Company Contact:
- Posted By: Jinan EagleTec CNC Machinery Co., Ltd.
- Phone: 86-13065026945
- Address: Gongyebei Road, Jinan , Shandong , China
- Email:
- Website: https://www.eaglecnctec.com
Published date: December 10, 2016
- Business Description: EagleTec CNC can provide you CNC router (include wood router basic type, stone and aluminum working router, atc wood router, multi-head cnc router), panel furniture machining center, cnc plasma and laser cutting machine, spare of router, router bits and woodworking solution machinery include panel saw, vacuum presser, sanding machine and so on.
Also, we can provide you technical assist on router machines.
Our team has over 15 years of experience designing, building and operating CNC machines.
Through the years, we have seen changes and development of this field including hardware and software technology.
We've continued to grow along with it to ensure we're offering the best combinations of each element to help you do your very best job.
