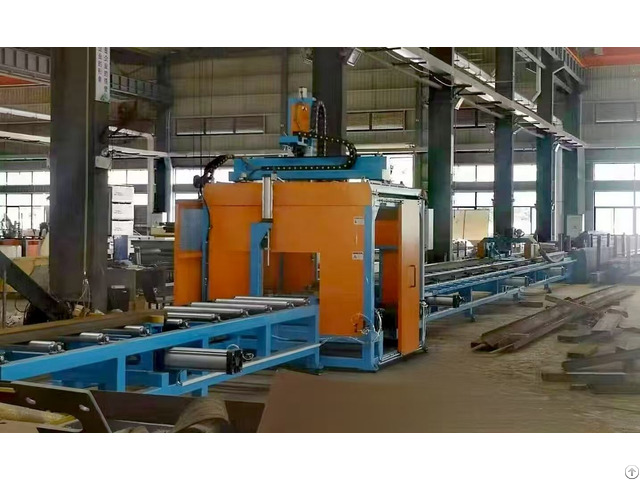

Affordable H Beam Cnc Plasma And Gas Cutting Machine For Steel Structure - China

The CNC H beam cutting machine is an automatic structural steel cutting machine specially for steel sections.

It is equipped with advanced CNC systems and nesting software, advanced in functions and highly automated.

The equipment can carry out cutting and other processing of fixed length, groove, wedge head, and various holes on different steel profiles, including H-beaml, channel steel, angle steel, I-beam, etc.

It can replace the traditional sawing processes such as cutting to length, profile locking, groove cutting and drilling.

Not only can the h beam cutting machine save the purchase & maintenance costs of various cold working machine tools, but it can also save a large number of work labors, floor area, processing hours and handling of different processes.

The h beam cnc plasma cuting machine is widely used in industries such as ocean engineering, shipbuilding, lifting machinery, engineering machinery, construction machinery, steel structure curtain walls, entertainment facilities, heavy vehicles, power towers, etc.

H Beam Cutting Video: Techinical Parameters:

Name H beam CNC Plasma & Gas Cutting Machine for Steel Structure

Profile types H beam, I beam, channel steel, angle steel, etc.

Effective cutting length 12m(can be customized)

Web size range 100mm-800mm (can be customized)

Cutting mode Plasma/flame cutting

Cutting thickness Flame: 6-60mm; plasma: upon actual plasma source

Cutting speed 10-2, 000mm/min.

Moving speed 10-6, 000mm/min.

Cutting accuracy ±1.5mm

Positioning accuracy ±0.3mm

Repeatability accuracy ±0.02mm

Bevel cutting 45 °

Max loading capacity 1.5T

Power supply AC380V/50HZ, 3-phase(customized) H Beam Gas Cutting Machine Details:

1).

The steel beam cutting machine adopts advanced industrial control computers, and the system comes with a graphics library.

Simply modify the graphics parameters in the library to achieve cutting of various steel shapes and graphics, without the need for programming and drawing operations.

2).

The CNC beam cutting machine adopts an industrial grade explosion-proof resistance touch screen, with electromagnetic radiation, anti-interference, and synchronous 3D display & cutting.

3).

The overall welded bed has undergone aging treatment and high-precision milling processing, with high accuracy, durability, and overall lifting.

After arriving at the site, it can be directly used by connecting the power cord

4).

The workpiece is automatically aligned and clamped according to the cylinder, without the need for manual centering.

After hydraulic automatic clamping, it is pushed to the cutting platform for cutting.

After cutting, it is automatically transported out, achieving zero tailings cutting with a high degree of automation, and there is no need for manual interference during cutting.

5).

The swing gun shaft adopts a TCP mechanical structure, and the A-axis and B-axis ensure smooth and stable cutting without shaking.

The swing angle error is within 5 arc minutes, and the cutting accuracy is high;

6).

Top quality parts & components to ensure long service life and excellent performance, such as Hypertherm plasma cutter, Yasakawa servo, Hiwin guide rail, etc;
