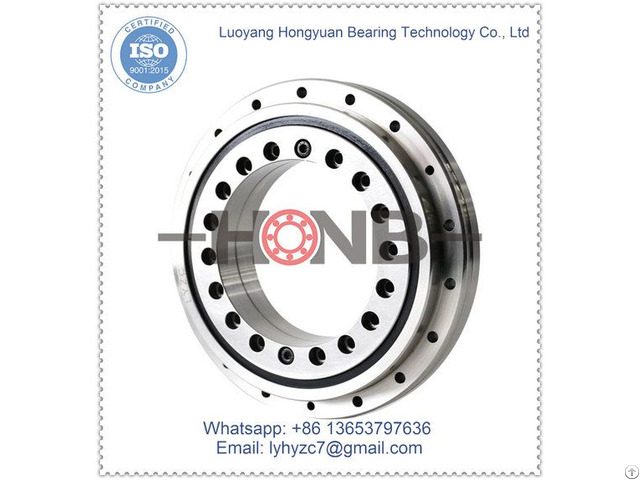

Zkldf100 Rotary Table Bearings - China

ZKLDF Series Axial angular contact ball bearings Features: Axial/radial bearings YRT, YRTS and axial angular contact ball bearings ZKLDF are ready-to-fit high precision bearings for high precision applications with combined loads.

They can support radial loads, axial loads from both sides and tilting moments without clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy, such as rotary tables, face plates, milling heads and reversible clamps.

HONBbearing07 Due to the fixing holes in the bearing rings, the units are very easy to fit.

The bearings are radially and axially preloaded after fitting.

The mounting dimensions of all series are identical.

Areas of application: Axial angular contact ball bearings ZKLDF are particularly suitable for high speed applications with long operating duration, Figure 1 - They are characterised by high tilting rigidity, low friction and low lubricant consumption.

Axial angular contact ball bearings ZKLDF comprise a single-piece outer ring, a two-piece inner ring and two ball and cage assemblies with a contact angle of 60°.

The outer ring and inner ring have fixing holes for screw mounting of the bearing on the adjacent construction.

Company Contact:

• Posted By: Luoyang Hongyuan Bearing Technology Co., Ltd

• Phone: +8613653797636

• Address: Konggang Industrial cluster, Luoyang, , Luoyang , China

• Email:

• Website: https://www.hyzcbearing.com/

• Business Description: Luoyang Hongyuan Bearing Technology Co., Ltd. was established in December 2005, located in the Luoyang Airport Industrial Cluster, with more than 300 employees.

  With the development of precision bearings as the development direction, the company specializes in the research and development and manufacture of three series of precision rotary table bearings, cross roller bearings and robot reducer bearings.

  The precision grades are P2, P4 and P5, and the size range is φ20mm – φ2000mm.
