W 2100 Series Pto Shaft Replacement Of Walterscheid - China

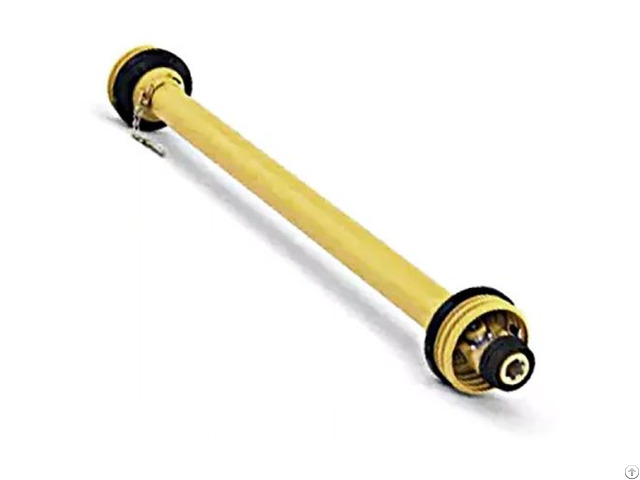

W 2100 Series PTO Shaft Replacement of Walterscheid The conventional style is suitable for utilization of drive shafts that have parallel axes.

Based on the specific situation, it is suggested that a joint of a simple design be operated to an angle of.

25deg.

An angle that is constant throughout continuous operation up to max.

15deg must not be exceeded.

Advantages Of W 2100 Series PTO shaft

The W-Series PTO drive shafts feature the proven HZPT technology and are perfect for any application.

The most notable benefits that come with these PTO drive shaft is its longevity of service as well as its ease of use and the best security features.

HZPT is a reliable warranty of the best quality for years.

The W-Series is designed to handle simple to more complex tasks on the driveline.

It is awe-inspiring to users thanks to its durable design and reliability for use in everyday life.

Another benefit is that all components included in this series of PTO W-series driveshaft can be changed with ease for greater user-friendliness or in the event that replacement parts are needed.

Specifications Of W 2100 Series PTO shaft

Long description PTO drive shafts complete standard series W 2100 Application selection Small crop sprayers

Tedders

Windrowers

Properties Tension side 1-3/8" (6) shaft collar kit

Machine side 3/8" (6) sliding pin

A frequency of oiling ranging ranges from 50-100 hours

In compliance with the requirements set out in EC 993/392 EEC

Conforming to EN12965, the standard for safety EN12965

CE marking is available

It consists of PTO shaft shielded

Declaration of conformity

Instruction manual

Technical details See Walterscheid instruction manual

Max.

dynamic capacity 120 rpm: 540 rpm and 220 Nm

Max.

dynamic capacity at 1000 rpm: 18 kW 175 Nm

Values at 5deg angle at work and service life of 1000 hours

LZ = length of slid in millimeters starting at intersection and ending

PTO Shafts Parts and components

Tractor Yoke Cross and Bearing Kit Shaft Shaft Weld Yoke

Slip Sleeve Tube Tube Weld Yoke Implement Yoke

Yoke & Shaft Assembly Yoke & Tube Assembly Drivelines Guard & Guard Bearing

Does it the PTO Shaft North American or Metric?

The most straightforward way to identify if the PTO is North American or Metric is to examine the form of the shafting and tubing.

PTO is considered domestic when the tubing/shaft is rectangular, square or hexagonal.

It can also be splined.

If the tubing/shaft is made of a bell or lemon, then it's measured.

There are two kinds of drivetrains that are metric that are the German style (Walterscheid trademark) in addition to Italian style (Bondioli and Pavesi).

The German shaft/tubing features an asymmetrical star and lemon profile and the Italian is a bell shape.

PTO Domestic North American Tubing Shape PTO Metric Tubing Shape PTO Tubing Shape Bell Italy What is the series of that is the system for transmission?

A reliable method to determine which PTO series you are using is to measure two times of the bearing and cross located on the tractor side on the drivetrain.

Make use of a caliper for measuring the outside diameter of your U-joint's cover.

This is similar to measuring the inside of the yoke and lug.

Then, take a measurement of the u-joint from both directions.

Utilize the cross - and bearing chart in order to compare these measurements.

It is easy to determine the other PTO components needed or the entire drivetrain needed.

PTO shaft for Agricultural Gearbox

The PTO shaft a sophisticated mechanism that permits implements to use energy generated by an engine.

It is an agricultural gearbox that is mechanical.

PTO shafts are a type of mechanical agricultural gearbox.

PTO shaft is able to be mounted on the transmission of a vehicle, and is an integral part of the overall system.

A top-quality PTO shaft is one that's durable enough to withstand torsion as well as limit vibration.

HZPT makes a broad range of sturdy PTO shafts designed that can meet your demands.

A Agri-related gearbox is also available.

Contact us now! Why should you select Us?

Rough forgings

All yokes are constructed of premium steel that is forgered.

Longer life span as compared to casted.

Customized plastic cover

The latest plastic materials, high breaking strength, resistance to temperatures below -20 degrees as well as color and printing.

It is easy to lubricate

The lubricating Nipple is secured through painting, making it visible Guard your engine from damage

A shear bolt from that torque limiter will be tested in accordance with the torque required.
