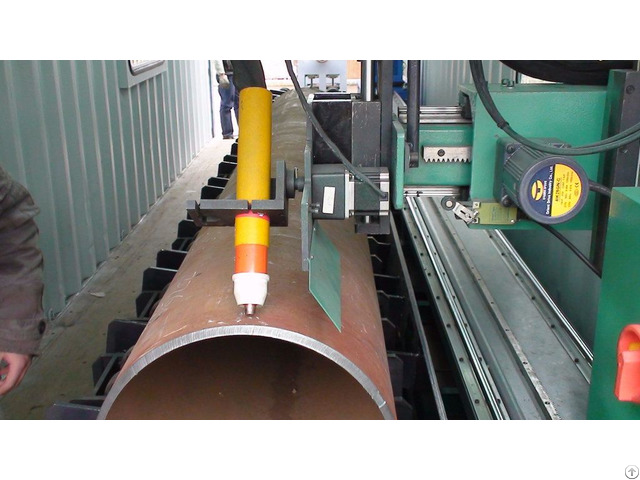

Roller-bench-type Pipe Plasma Beveling & Cutting Machine

Model: BPPBM-24A

Performance features

On-line Performance: good (designed as per the on line equipment of the production line)

Beveling Speed: ≤2Min /pipe bevel (DN200 SCH40)

Bevel cutting: cutting off & with one bevel of the pipe at simultaneously.



Bevel quality: good

Technical parameters

Pipe diameter applicable: DN100～600(φ114～610)

Applicable wall thickness: 1～18 mm

Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel

Cutting length: 6350MM

Bevel Shape: V

Cutting direction: lengthwise

Roller bench:

Structure: three line roller with fixed distance

Roller bench Length: 7000MM

Driving System: servo motor + precision reducer

Rev: 0～2.5M/Min (VF stepless speed adjustment)

Roller bench Material: 45#, Surface bluing treatment

Rotation Accuracy: <2.0MM

Trolley System:

Trolley stroke: 6350MM (moving lengthwise)

Cutting torch travel: 700MM (up/down); 300MM (left/right)

Cutting with: Plasma cutting(can be equip for flame cutting)

Cutting Torch Angle: ±45°(adjustable)

Cutting Torch Quantity: one piece of plasma cutting torch

Angle error: <2°

Length fixing accuracy: <2.0MM

Control System: SH～2000H CNC Cutting System

Length-measuring system: CNC length measuring which is included in the control system.

Conveying system: built in a conveying system equipped with a lifter; one set of conveying system can be provided additionally for bevel cutting machine if necessary and conveying can be implemented manually or electrically.

Cutting power: our OEM products which are famous in China (or as per customers’ demands)
