Pipe Prefabrication Lateral Trolley Convey System - China

price: contact company for price

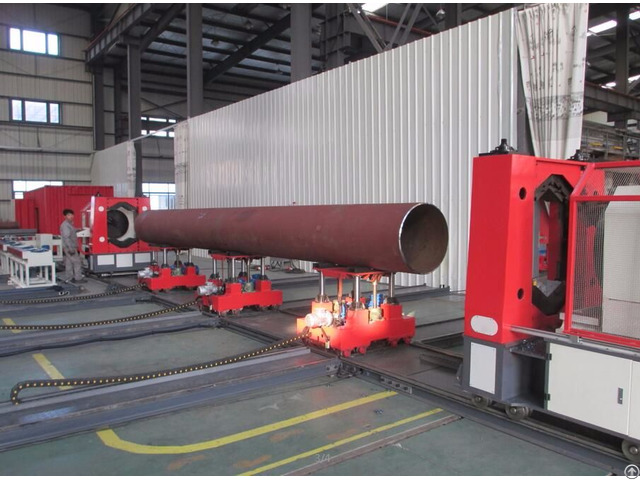

Pipe Prefabrication Lateral Trolley Convey System

Products Photos Catalog Pipe Prefabrication Photos Catalog

-Pipe Transverse Automatic Conveying System

Model: PHLTS-24A1/A2

Performance features

Conveying the pipe or spool pieces transversely when they are beveling or automatically welding.

It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.

Technical parameters

Pipe diameter applicable: DN50～600(φ60～610)

Conveying length: ≥1000MM (or depend on customers’ requirements)

Line length: 7.5M (or depend on the situation)

Line height: 800MM

Trolley number: 4 sets

Lifter mechanism: with screw lifter, driven electrically

Lifter route: ±30MM

Conveying mechanism: chain sprocket mechanism

Speed of conveying: 0-10M/min

Max loading capability: 2500KGS/5000KG S


Company Contact:


  • Phone: 8615221220112

  • Address: No.866, Xinyan Road, Maogang Town, Songjiang District, Shanghai , Shanghai , China

  • Email: Email


Published date: July 26, 2016

  • Business Description: QSPT is the leading manufacturer and the most professional & innovation ability provider of integrated / total solutions for automation piping spool prefabrication, also is the unique provider of professional Piping Plant Design Software & Intelligent Management Software System and Piping Equipments in China which included pipe spool fabrication line, cutting equipments, beveling equipments, fitting up equipments, handling equipments, welding equipments, as well as offer the commercialize piping fabrication service, training & guidence management service for automation pipe spool fabrication engineering project of Oil & Gas, Petrochemical, Petroleum, Chemical Industry, Power Plant, Offshore & Marine Engineering, Shipbuilding Industry, Aerospace, Electromechanical, Energy Engineering, Cement Plant, Boiler, Pressure Vessel, Heavy Industry, Heat Exchanger, Pipework Construction and install Fields etc.
