High Quality Cut To Length Line - China

Cut to Length Line Introduction:

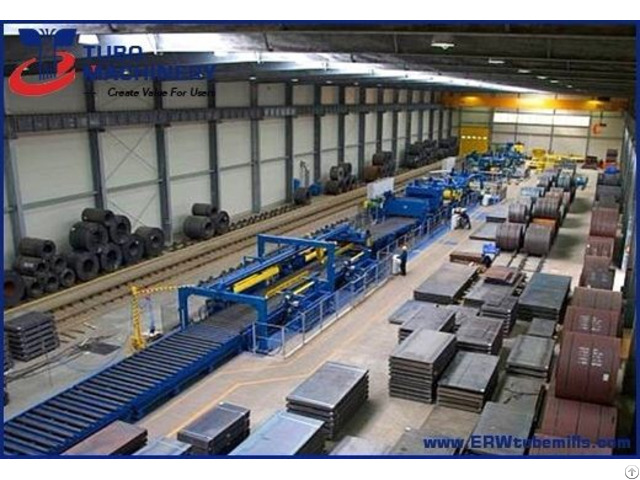

This is a kind of steel coil leveling equipment, integrating scissor and drop-type stackers.

This metal cut to length line has the feature of hydraulic adjustments and oiling capabilities.

The resulting steel coils have uniform width and flatness, so that the appearances can be improve, at the same time, the quality of finished operation can also be improved too.

The products from our Company can meet all the requirements of our customers, including thickness measurement, width measurement, coating weight measurement, surface inspection and flatness inspection.

This cut to length line is divided in to three kinds because of different strip thickness and strip width, including thin coil cut to length line, middle thick coil cut to length and thick coil cut to length line.

Application:

The metal coil decoiling, leveling and cut to length line apply to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials.

Tubo Machinery Co.

Ltd is a professional manufacturer and supplier of metal coil decoiling, leveling and cut to length line in China.

We still have other products: steel coil slitting line including thin coil slitting line, middle thick coil slitting line and thick coil slitting line; With good quality and affordable price, our products has been exported to many countries, such as Germany, Holland, India, Indonesia, New Zealand, Syria, United Arab Emirates, Russia, Kuwait, South Africa, and Bangladesh.

High-Speed Cut-To-Length Line

The high speed CTL machine (coil strip cut-to-length) fit steel coils with thickness: (0.2-2mm, 0.3-3mm, 0.6-4mm, or 1-5mm) and changeable width and length of finished sheets depend on customer's practical need.

Advantages and Characteristics:

1 - Fast speed and high precision

Line speed can be up to 100m/min, 25-30pcs/min 2000mm Length sheets in average.

Leveling precision: ±1mm/㎡

Sheet length precision: ±0.5mm/m

Sheet diagonal length precision: ±0.5mm/m

2 - Thin coils differ in coil weight, when max coil weight is small, usually single mandrel (cantilever) uncoiler for this high-speed cut-to-length line is adopted.

3 - To make flat steel sheets, the diameter of leveling rollers should be scientifically proper, we confirm diameter of leveling rollers by actual experiences and engineering calculation.

4 - Automatically piling-up bracket can receive finished sheets and automatically pile them up orderly.

5 - Hole accumulator between leveling machine and fine leveling, is necessary to protect sheet surface and make sure the simultaneously work of leveling machine DC motor and fine leveling servo motor.
