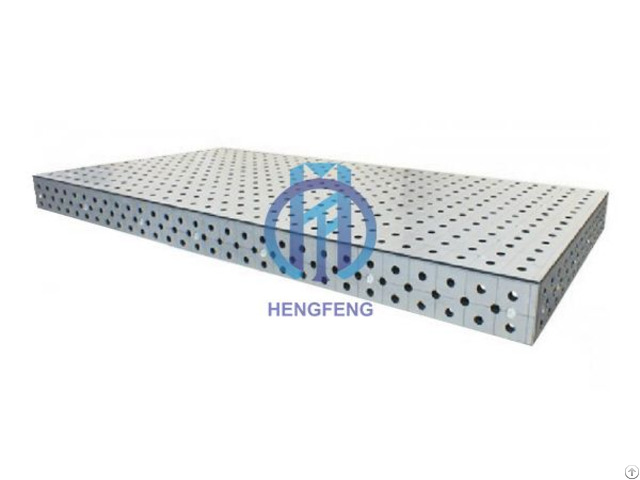

D28 Steel 3d Welding Table - China

3D Welding Table is designed for the manufacture of welded products; Made from high quality cast iron or steel, it has 5 precision machined working surfaces (1 top + 4 side surfaces).

3D welding table has good durability and performance, it offers you a flexible working surfaces for clamping, assembly and fabrication of workpieces with variable design to perform your welding operations.

Material: steel welding table: Q355

cast Iron welding table: HT 250 or HT300

Hardness: steel welding table: HV150-210

casting welding table: HB170-210

nitrated steel welding table: HV450-500

nitrated casting welding table: HV400-500

Precision machined working surfaces: 5 (1 top + 4 side surface), can be expandable by support tools.

Hole diameter: 28mm

Grid spacing: 100±0.05mm

Precision: table horizontal precision: 0.1/1000mm

table vertical precision: 0.1/200mm

drilling center accuracy: +/- 0.03mm

Hole pitch: 100mm

Perimeter ruler engraving: 1mm scale

Side surfaces height: 200mm

Be reinforced on the underneath side by ribs

Surface treatment: standard/ nitrided

Loading capacity: 2 tons weight loading capacity.

Supporting: legs or steel frame

Fixtures:

1 - Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge

2 - Spare parts for locating

3 - Tools for clamping and fixing

4 - Spare parts for locking working pieces

5 - Auxiliary tools

Features OF Precision 3D Welding Table:

• Superior Quality: Made from high-quality raw material, 3D welding table offers exceptional sturdiness and stability, providing a reliable surface for precise welding.

• 3D Surface Design: The innovative 3D surface design ensures that the workpieces stay firmly in place, preventing any unwanted movement during welding.

• Versatile Fixturing Options: Equipped with wide fixturing options, 3D welding table allows you to secure various workpieces securely, accommodating complex welding projects easily.

• Heat and Spatter Resistant: The cast iron construction has excellent heat and spatter resistance, ensuring the welding table remains in pristine condition over prolonged use.

• Easy Cleanup: Due to its smooth surface, cleaning up after welding projects becomes very easy.

3D Welding Table Applications:

Aerospace Industry

Fabrication Projects

Automotive Repairs

Industrial Maintenance

Machine Manufacturing
