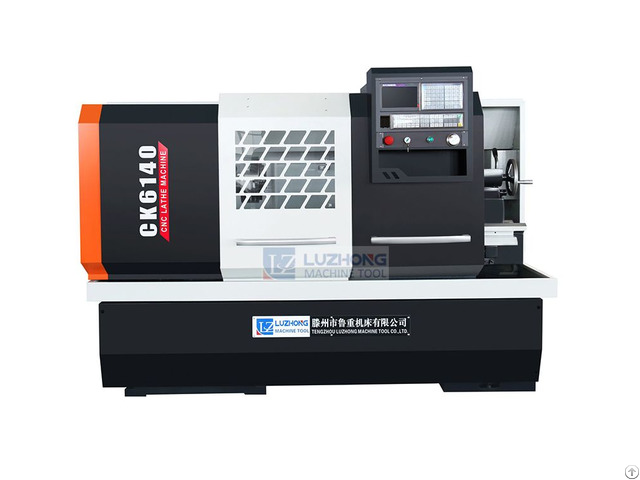

Cqk6140 Cnc Lathe Machine - China

Flat Bed CNC Lathe Machine

CNC Lathe Machine

Heavy Duty CNC Lathe Machine

Product description：

1 - Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.

2 - The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.

Product main technical Specifications:

ITEM Specifications UNITS CQK6140

Capacity Max.

Swing over bed mm Φ400 Max.

swing over cross slide mm Φ220 Maximum length of workpiece mm 750/1000/1500/2000

Spindle Spindle hole mm 52mm(82mm) Spindle nose ISO-C6(C8) Spindle tap MT6 Spindle speeds(Number) rpm Low：100-500High: 500-180 Optional: 90-1800

Feed Z-axis stroke mm 750/1000/1500/2000 X-axis stroke mm 330 rapid moving speed(m/min) m/min 3/6 X/Z min input(mm) mm 0.001

Tailstock Dia.

Of tailstock sleeve mm 75 Taper of tailstock sleeve MT5 Travel of tailstock sleeve Mm 140

Carriage Tool number 4(6) Tool body size mm 20*20 Knife tool change time s 2

Position accuracy Repeat positioning accuracy mm 0.01

Power Main motor power K.

W 5.5/7.5

Machine size(L*W*H) Overall dismensions for 750mm Mm 2200*1500*1600 Overall dismensions for 1000mm Mm 2450*1500*1600 Overall dismensions for 1500mm Mm 2950*1500*1600 Overall dismensions for 2000mm Mm 3450*1500*1600

Weight Weight for 750mm kg 1800 Weight for 1000mm Kg 1900 Weight for 1500mm Kg 2100 Weight for 2000mm kg 2300
