China Linear Auto Tool Changer Cnc Router Machining Center - China
price: 16000.00 Dollar US$

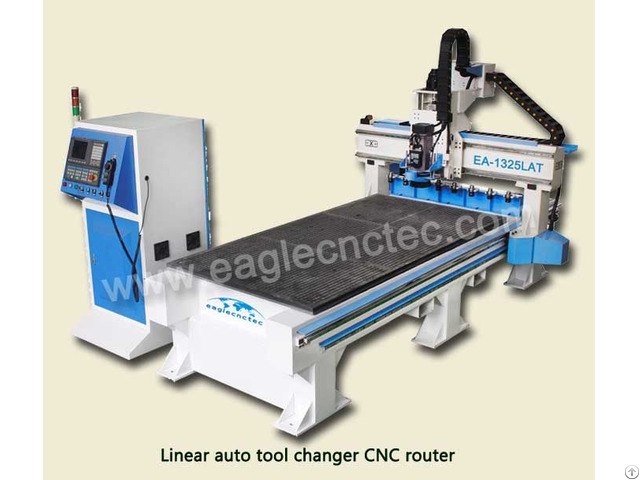

China Linear Auto Tool Changer CNC Router Machining Center
Working Size (X Y Z) 1300×2500×300 mm
Driving Motor Servo - Brand Delta
Controller SYNTEC
Command G-code
Max.
Traveling Speed 60, 000 mm/min
Max.
Working Speed 45, 000 mm/min
Work-Holding By vac-sorb or by clamp, both available
Vacuum Pump 5.5KW, air-ring, 160CBM/hour flow rate
X Y Transmission Helical rack and pinion, HIWIN square linear guide way
Z Transmission Taiwan TBI rolling ballscrew, HIWIN square linear guide way
Spindle 9.0kw, air cooling, 0-24000 rpm variable speed (HSD from Italy)
Tool Magazine Linear Style, 6 position
Tool Shank ISO30, 6 pieces provided for free
Collet Size ER32, available diameter of cutter φ3.175-φ18mm
Tool Sensor Included
Working Power AC 380V/50-60Hz, 3 Ph 4 Wire
Max.
Power Consumption 22KW
Net Weight 1600 KGS
Packing Plywood case suitable for sea shipment
Company Contact:
- Posted By: Jinan EagleTec CNC Machinery Co., Ltd.
- Phone: 86-13065026945
- Address: Gongyebei Road, Jinan , Shandong , China
- Email:
- Website: https://www.eaglecnctec.com
Published date: December 14, 2016
- Business Description: EagleTec CNC can provide you CNC router (include wood router basic type, stone and aluminum working router, atc wood router, multi-head cnc router), panel furniture machining center, cnc plasma and laser cutting machine, spare of router, router bits and woodworking solution machinery include panel saw, vacuum presser, sanding machine and so on.
Also, we can provide you technical assist on router machines.
Our team has over 15 years of experience designing, building and operating CNC machines.
Through the years, we have seen changes and development of this field including hardware and software technology.
We've continued to grow along with it to ensure we're offering the best combinations of each element to help you do your very best job.
