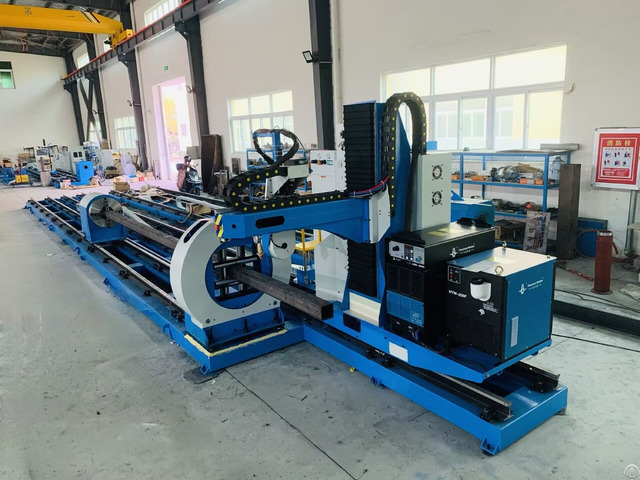

All In One Cnc Plasma Beam Cutting Machine For Steel Frames And Trusses - China

Features of CNC Plasma Beam Cutter:

1).

Strong structure with an integral welded bed body for the CNC plasma beam cutting machine, which has undergone deformation treatment and precision machining to ensure the smoothness and big loading capacity.

body structure of 8 axis cnc plasma pipe cutting machine

2).

The cnc beam cutting machine adopts an industrial personal computer(IPC) system controlled by ETHERCAT bus.

The system comes with cutting modules for different profiles, which can be directly accessed and used.

By inputting cutting requirements and material parameters, cutting operations can be directly carried out without programming.

Capable of supporting tekla modeling (additional single paired nested parts need to be specified during procurement)

square tube cutting demo of 8 axis cnc plasma pipe cutting machine

3).

Industrial grade explosion-proof five-wire resistance touch screen, fully shielded, anti electromagnetic radiation, anti-interference, and synchronized 3D display and cutting.

control panel of 8 axis cnc plasma pipe cutting machine

4).

The front and rear chucks adopt a pair of dedicated square chucks with self centering function.

During cutting, the four claws work synchroniouly, and the cutting gun can skip the square chuck to the end of the rear chuck for cutting to achieve zero-tailing cutting function.

chuck system of 8 axis cnc plasma pipe cutting machine

5).

The swinging gun shaft adopts a TCP mechanical structure, the A-axis and B-axis ensure a smooth and stable cutting without shaking, ensuring high cutting accuracy;

TCP structure of 8 axis cnc plasma pipe cutting machine

6).

The cutting gun is equipped with a strong magnetic suction anti-collision function.

When cutting, it will alarm and detach from the magnetic suction arm in case of collision to avoide damage to the mechanical structure and cutting gun;

7).

Unique synchronous support system can provide precise support to avoid sagging deformation caused by excessive material length

follow-up support of 8 axis cnc plasma pipe cutting machine

8).

Top quality parts & components to ensure long service life and excellent performance, such as Hypertherm plasma cutter, Yasakawa servo, Hiwin guide rail, etc;

Techinical Parameters:

Item Specification

Name All-in-one CNC Plasma Beam Cutting Machine for Steel Frames & Trusses

Diameter range Round: Φ60-630mm(with bevel cutting);

Square: 60-400mm(with bevel cutting); H beam: 100-400mm(no bevel cutting); Channel steel: 100-400mm(no bevel cutting); Angle steel: 100-400mm(no bevel cutting); Pipe length 12m(customizable)

Cutting mode Plasma cutting, oxyfuel cutting

Cutting thickness In terms of plasma source

Cutting speed 10-6, 000 mm/min

Moving speed 0-8, 000 mm/min

Working precision 0.1mm

Reposition precision 0.03mm

Max loading weight 3, 000Kg

Quantity of axis 8 axis

Bevel cutting angle ±45°

Ambient temperature -10 º C – 45 º C

Ambient humidity Less than 80%, no condensation

Power supply 380V± 10%, 50Hz, 220V± 10%, 50Hz
