Woltman Remote Reading Irrigation Hydrometer Flange Port Water Flow Meter Multi Jet - China

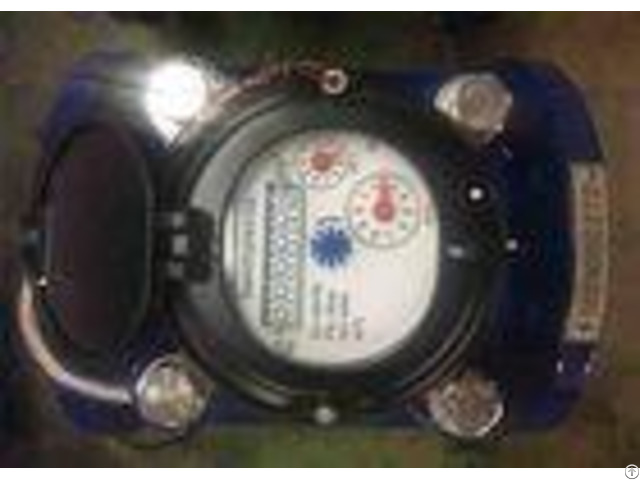

Woltman Water Flow Meter Multi Jet Water Meter Reed With Positive Displacement for irrigation hydrometer The dry dial woltman water meter can be used for a remote reading transmission system as equipped with a built-in sensor.

Application --Measuring the volume of cold (hot) water passing through the pipeline Feature: --Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline; --Dry-dial, Magnetic drive sensitive action, small pressure loss; --Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service; --Selected high quality materials for steady & reliable characteristic; --Technical data conform to international standard ISO 4064 - Working condition Water temperature: 0.140 ( 0.190 for hot water meter) Water pressure: 1Mpa (1.6MPa for special requirement) Maximum permissible errors # in the lower zone from qmin inclusive up to but excluding qt is 5% # in the upper zone from qt inclusive up to and including qs is 2% (3% for hot water meter) MAIN TECHNICAL SPECIFICATIONS - - - - Type | Size (mm) | Class | qs Overload Flow | qp Permanent Flow | qt Transitional Flow | qmin Min.

Flow | Min.

Reading | Max.

Reading | m3/h | m3 | LXLC-50 | 50 | A | 30 | 15 | 4.5 | 1.2 | 0.0002 | 999, 999 | B | 3.0 | 0.45 | LXLC-65 | 65 | A | 50 | 25 | 7.5 | 2.0 | 0.0002 | 999, 999 | B | 5 | 0.75 | LXLC-80 | 80 | A | 80 | 40 | 12 | 3.2 | 0.002 | 999, 999 | B | 8.0 | 1.2 | LXLC-100 | 100 | A | 120 | 60 | 18 | 4.8 | 0.002 | 999, 999 | B | 12 | 1.8 | LXLC-125 | 125 | A | 200 | 100 | 30 | 8 | 0.002 | 999, 999 | B | 20 | 3 | LXLC-150 | 150 | A | 300 | 150 | 45 | 12 | 0.002 | 999, 999 | B | 30 | 4.5 | LXLC-200 | 200 | A | 500 | 250 | 75 | 20 | 0.002 | 999, 999 | B | 50 | 7.5 | LXLC-250 | 250 | A | 800 | 400 | 120 | 32 | 0.002 | 999, 999 | B | 80 | 12 | LXLC-300 | 300 | A | 1200 | 600 | 180 | 48 | 0.02 | 9, 999, 999 | - - - - DIMENSIONS - - - - Type | Size | L Length | H Height | Connecting flange | D1 OD | D2 Bolt circle diameter | Connecting Bolts (n-M) | mm | LXLC-50 | 50 | 200 | 261 | 165 | 125 | 4-M16 | LXLC-65 | 65 | 200 | 271 | 185 | 145 | 4-M16 | LXLC-80 | 80 | 225 | 279 | 200 | 160 | 8-M16 | LXLC-100 | 100 | 250 | 289 | 220 | 180 | 8-M16 | LXLC-125 | 125 | 250 | 299 | 250 | 210 | 8-M16 | LXLC-150 | 150 | 300 | 319 | 285 | 240 | 8-M20 | LXLC-200 | 200 | 350 | 346 | 340 | 295 | 8-M20(1.0MPa) | 12-M20(1.6MPa) | LXLC-250 | 250 | 400 | 434 | 395 | 350 | 12-M20(1.0MPa) | 450 | 434 | 405 | 355 | 12-M24(1.6MPa) | LXLC-300 | 300 | 450 | 459 | 445 | 400 | 12-M20(1.0MPa) | 500 | 459 | 460 | 410 | 12-M24(1.6MPa) | - - - - NOTE: The flange dimension conforms to ISO7005-2: 1988 standard.

Order for products of special requirements is also accepted.

Competitive Advantage: # Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003 # Strict process control # Advanced calibration equipment # Engineer team Pallet pack
