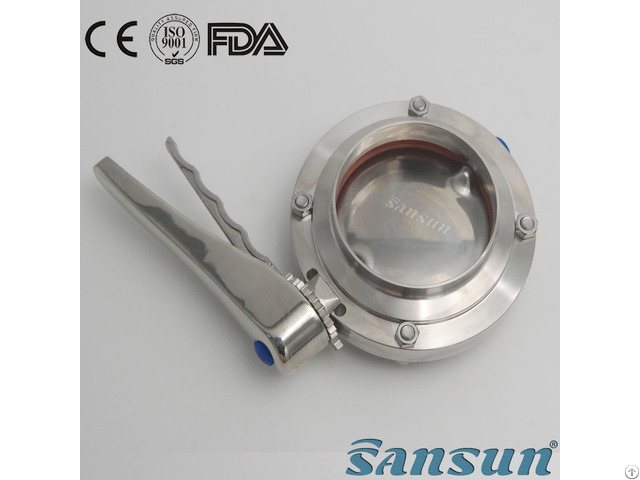

Stainless Steel Food Grade Sanitary Hygienic Manual Welded Butterfly Valve - China

Product Name: Stainless Steel Food Grade Sanitary Hygienic Manual Welded Butterfly Valve

Valve Body Material: 1.4404/1.4301, SS304/SS316L(Forged)

Disc: 1.4404/1.4301, SS304/SS316L(Forged)

Seal Material: EPDM (standard)conforms to FDA177.2600

Surface Finishing: RA<0.8 um

Operating Principles: The handle blocks valve in Open or Close position, if with muti-position handle, other position is also available.

Max Working Pressure: 10Bar(DN25 to DN100), 8 bar(DN125 to DN150), 5 bar(DN200 to DN300)

Max.

Working Tem: 120 degree C

Availably Size: DN10-DN300, 1/2"-10"

Features: Compact and robust design PED97/23EC FDA.

177.2600 The valve body can be changeable with any kind of connection

Availably standard:

DIN/SMS/RJT/ISO/IDF


Operated: Manual

Options Gasket: EPDM, silicone or Viton

Connection: weld, clamp, thread, weld thread, flange

Hanld: two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle

Control: Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)

Certificate: PED/97/23/ EC, FDA.

177.2600

Application scope: Dairy, food, beverage, pharmacy, cosmetic, Chemical, etc

Company Contact:

• Posted By: Wenzhou Sansun Stainless Co., Ltd.

• Phone: 86 - 577 - 86991996

• Address: No. 691. Binhai Economic and Technological Zone, Wenzhou, Wenzhou , Zhejiang , China

• Email:

• Website: https://www.sansunstainless.com

• Business Description:

  Wenzhou Sansun stainless Co., Ltd. Was founded in 2012, Located in Wenzhou, China.

  SANSUN is a professional manufacturer of Sanitary -grade stainless steel valves, fittings and pumps.

  Our products includes: 1 - Sanitary stainless steel valve ( sanitary butterfly valve, sanitary divert single seat valve, sanitary double seal mixproof valve, sanitary air relief Valve, sanitary diaphragm valve, sanitary check valve, sanitary ball valve, sanitary CPM valve, .

  ) 2 - Sanitary Stainless steel pipe fittings( stainless steel sanitary elbow, tee, clamp, ferrule, union, cleaning ball, sight glass, filter.

  ) 3 - Sanitary pump ( stainless steel sanitary centrifugal pump, sanitary rotary lobe pump, sanitary CIP pump) 4 - Tank accessories (manhole cover, filter, sight glass, cleaning ball ) We have skillful production people and strong R&D technicians who have accumulated over 15 years experience in manufacturing, developing and designing various sanitary fittings and sanitary valves.

  Under the strict control system - ISO 9001 quality assurance, we have made our OEM products widely extend to international well-known manufacturers.
