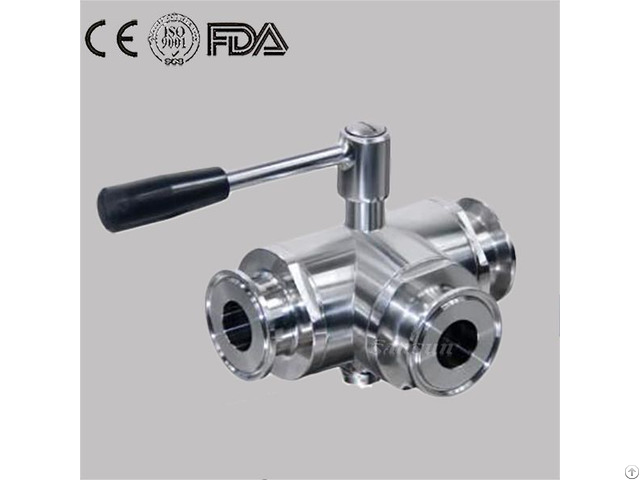

Sanitery Stainless Steel Food Grade Hygienic Manual Clamped 3 Way Ball Valve - China

Product Name: Sanitery Stainless Steel Food Grade Hygienic Manual Clamped 3 Way Ball Valve

Valve Body Material: 1.4404/1.4301, SS304/SS316L(Forged)

Seal Material: EPDM (standard)conforms to FDA177.2600

Surface Finishing: RA<0.8 um

Operating Principles: The ball valve is installed in any to pipeline and equipments for to controling.

It is specially used in brewing industry.

Max Working Pressure: 10Bar(DN25 to DN100), 8 bar(DN125 to DN150), 5 bar(DN200 to DN300)

Max.

Working Tem: 120 degree C(EPDM)

Availably Size: DN25-DN100, 1"-4"

Features: Compact and robust design PED97/23EC FDA.

177.2600 The valve body can be changeable with any kind of connection

Availably standard: DIN/SMS/RJT/ISO/IDF

Operated: Manual

Options Gasket: EPDM, silicone or Viton

Connection: weld, clamp, thread, weld thread, flange

Hanld: two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle

Certificate: PED/97/23/ EC, FDA.

177.2600

Application scope: Dairy, food, beverage, pharmacy, cosmetic, Chemical, etc
