Sanitary Stainless Steel Hygienic Pneumatic Electric Threaded Butterfly Valve With Aluminum Actuator - China

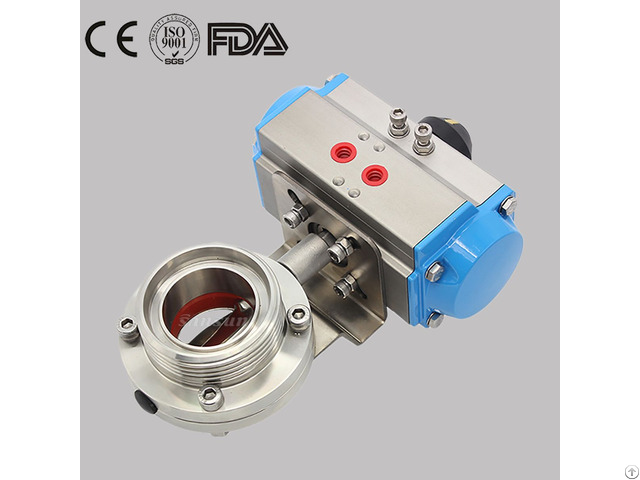

Product Name: Sanitary Stainless Steel Hygienic Pneumatic Electric Threaded Sanitary Butterfly Valve with Aluminum Actuator

Valve Body Material: 1.4404/1.4301, SS304/SS316L(Forged)

Disc: 1.4404/1.4301, SS304/SS316L(Forged)

Seal Material: EPDM (standard)conforms to FDA177.2600

Operating Principles: The butterfly valve can be operated automatically through actuator.

The actuator push piston of axial movementinto 90 degree so that it controls butterfly valve

Surface Finishing: RA<0.8 um

Air Pressure: 5-7 Bar

Max Working Pressure: 10Bar(DN25 to DN100), 8 bar(DN125 to DN150), 5 bar(DN200 to DN300)

Max.

Working Tem: 120 degree C

Availably Size: DN10-DN150, 1"-4"

Features: Compact and robust design PED97/23EC FDA.

177.2600 The valve body can be changeable with any kind of connection

Availably standard: DIN/SMS/RJT/ISO/IDF

Operated: Pneumatic

Options Gasket: EPDM, silicone or Viton

Connection: weld, clamp, thread, weld thread, flange

Control: Sensor, Pneuamtic actuator

(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)

Certificate: PED/97/23/ EC, FDA.

177.2600

Application scope: Dairy, food, beverage, pharmacy, cosmetic, Chemical, etc
