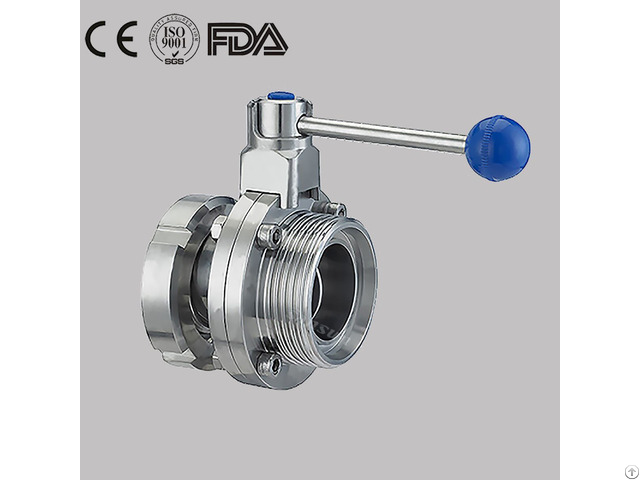

Hygienic Manual Nut Male Sanitary Butterfly Valve Stainless Steel - China

Installation and use:

1 - Before installation, the pipes and valves need to be cleaned, and there should be no scratches and dirt on the sealing surface to avoid internal leakage or reduce the service life of the product.

2 - When installing, carefully check whether the clamp connection model is consistent.

A special sealing ring should be installed at the connection between the clamp and the valve to make the valve and the pipeline connection sealed reliably.

Both horizontal pipelines and vertical stainless steel angle steel pipelines can be installed.

3 - After the installation is complete and the pressure medium is introduced, turn the handle 90° to check the internal and external seals.

If there is no leakage, it can be put into normal use.

4 - The sanitary butterfly valve is used to connect and disconnect the medium, and can also be used to adjust the flow, but do not install the valve in a system that requires strict adjustment of the medium flow.

5 - If it is found that there is still leakage inside the butterfly valve when it is closed during use, the sealing ring must be replaced and installed correctly before putting it into use.

Company Contact:

• Posted By: Wenzhou Sansun Stainless Co., Ltd.

• Phone: 86 - 577 - 86991996

• Address: No. 691. Binhai Economic and Technological Zone, Wenzhou, Wenzhou , Zhejiang , China

• Email:

• Website: https://www.sansunstainless.com

• Business Description:

  Wenzhou Sansun stainless Co., Ltd. Was founded in 2012, Located in Wenzhou, China.

  SANSUN is a professional manufacturer of Sanitary -grade stainless steel valves, fittings and pumps.

  Our products includes: 1 - Sanitary stainless steel valve ( sanitary butterfly valve, sanitary divert single seat valve, sanitary double seal mixproof valve, sanitary air relief Valve, sanitary diaphragm valve, sanitary check valve, sanitary ball valve, sanitary CPM valve, .

  ) 2 - Sanitary Stainless steel pipe fittings( stainless steel sanitary elbow, tee, clamp, ferrule, union, cleaning ball, sight glass, filter.

  ) 3 - Sanitary pump ( stainless steel sanitary centrifugal pump, sanitary rotary lobe pump, sanitary CIP pump) 4 - Tank accessories (manhole cover, filter, sight glass, cleaning ball ) We have skillful production people and strong R&D technicians who have accumulated over 15 years experience in manufacturing, developing and designing various sanitary fittings and sanitary valves.

  Under the strict control system - ISO 9001 quality assurance, we have made our OEM products widely extend to international well-known manufacturers.
