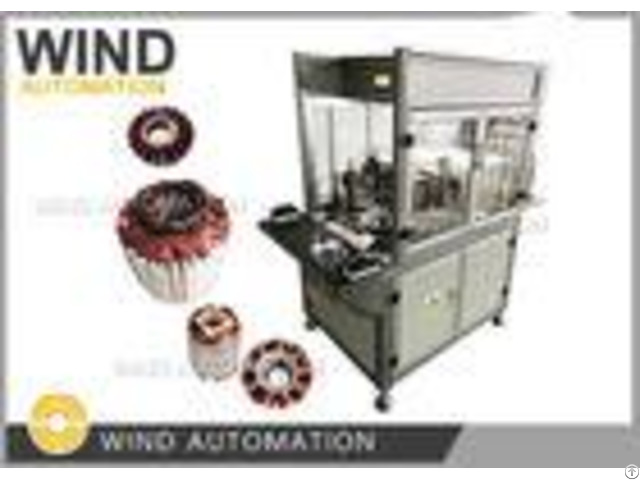

Fan Motor Ventilator External Rotor Winder Outrunner Stator Winding Machine WIND-8002B Application: Fan Motor stator, Ceiling fan Ventilator stator, External Rotor, BLDC Motor OutrunnerStator, Big size outside stator, Advantages: - - - - Fully automatic | Auto winding, auto arraying, auto indexing | Common Slot no.

range | 2 to 24slots | Muti wires handled | 30pcs wires | - - - - Parameter: Wire diameter: 0.05~0.45mm Stator OD: 50mm to 137mm (other size custom made) Stator Height: 10mm to 100mm Operation option: Auto Automatic winding, automatic indexing, automatic winding arranging, automatic clamping and cutting Stator slot no.

: Below 48 Slots Power suplly: AC220V 50/60Hz Weight: about 500KGS Dimension: 1600(L)x900(W)x1600(H)mm Question and Answer: Question 1: We are ac motor & fan manufacturer in X country, We are looking for winding machine for external rotor motor.

Stator photo is attached.

Stator diameter is 110mm and height is up to 80mm.

Winding arrangements are 2, 4 and 6 pole.

Please let me know in case of you have suitable winding machine Answer: May we know below information to recommend suitable machine? 1 - Rotor slot no.

(24 slots or 36 slots or other slots) 2 - Rotor size (110mm), one of them height 80mm, how about other height, Fan Motor always have types of stack height 3 - Winding diagram of stator should be changed to compliant with machine (now it is produce by hand) 4 - Single phase or three phase and how many poles separately, please make a list We can suggest winding diagram per motor phase and poles Question 2: How is the stator winding machine do the initial positioning? Answer: The machine use teeth or slotting on stator stack to do initial positioning Below is a example of teeth positioning Below samples and drawing are needed for machine manufacturing and commissioning, 1 - Stator stack 5pcs without winding 2 - Wound stator 1pc 3 - Copper wire 1 roll enough for winding 10pcs stators 4 - Stator lamination drawing and winding drawing Please click below picture to view video [] Contact: Shanghai Wind Automation Equipment Co., Ltd Email: [emily@motor-machinery.

co m] Skype: motor.

machinery Mobile: +86-17721374887
