Mini Cnc Machines - China

price: 5650.00 Dollar US$

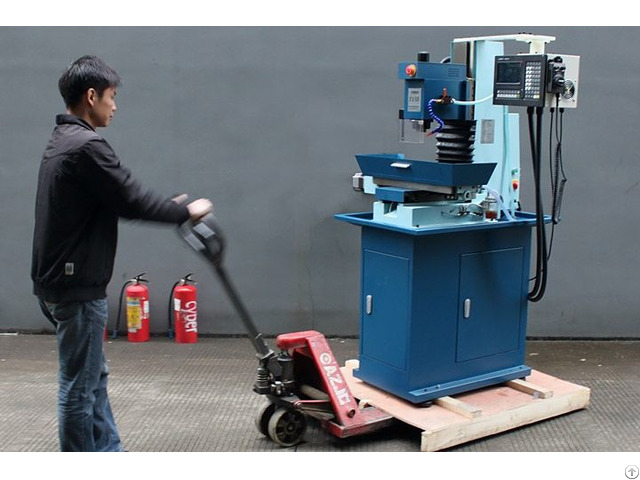

Mini Cnc Machines

Products Photos Catalog Mini Cnc Machines Photos Catalog

Product No：XK300

Product Name：Micro CNC Milling Features

(1).

Milling CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas

(2).

High performance 4 axis cnc milling controller, Optional siemens 808D or GSK980MDc cnc controller.

(3).

ARM 9 CPU+FPGA, Ethernet network interface, Support B macro function, PLC function, Mutil-language library function.

(4).

USB and RS232 port, DNC function of USB.

(5).

The standard spec includes MPG hand wheel.

(6).

By MPG handwheel convenient electronic control of each axis of movement.

(7).

Selection of high -quality casting materials, more compact.

(8).

A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.

(9).

220V single-phase AC power supply.

(10).

Safety electrical components of high quality and fast plug.

(11).

Pre-installed fourth axis fast interface.

(12).

With sink and nozzles.

(13).

Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.

Technical parameters

X axis travel 300mm

Y axis travel 175mm

Z axis travel 270mm

Table size 450*160mm

Spindle taper MT3/R8

Tool DIA.

range 4-16mm

T slot (amount*width) 3*12mm*43mm

Positioning accuracy 0.03mm

Repeatability accuracy 0.02mm

Control system Adtech 4640, Optional siemens 808D or GSK980MDc cnc controller

Instruction DXF+G code template function, converting DXF automatically to G code for processing

MPG hand wheel 4 axis

Spindle motor 1100W(1.5kw optional)

Spindle speed 100-3500r/min(24000r/min optional)

The max moving speed 2500mm/min

The max feeding speed 1500mm/min

Power of X/Y 4Nm/400W

Power of Z 6Nm/750W

Transmission ball screw

Max.

load 40kg

Table structure Full cast iron

Power 230/120V

Weight(NW/GW) 300/350kg

Overall dimension 900*950*1750mm

Packing size 1100*1040*2000mm
