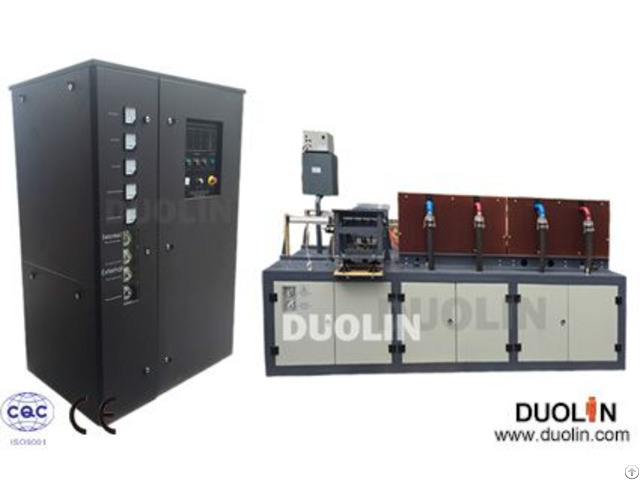

Induction Forging Machine - China

Induction Forging Machine

Power output: 100-800KW

Frequency: 0.5-10Khz

Bar Diameter: 25-200mm

Output: 0.2-3T/h

Temperature: 800-1250°C

Material: Carbon steel, Brass, Iron, Alloy steel, Stainless steel.

Aluminum

Application: Bar, Flat plate, Bar end heating, Flat bar End, Pipe ends, Custom

Feature:

Induction heating technology is increasingly being used for industrial forging applications because it offers an unbeatable combination of speed, consistency, control and efficiency.

Induction bender

DUOLIN offers induction forging machine used for heating a wide range of bar and billet diameters.

DUOLIN induction power supply is the latest generation; help you benefiting from the forging industry.

No combustible gases

Heating rapidly reduce oxide skin on billet

Improve the working environment

Uniform heating temperature increases die life

Continuously working, 24 hours non-stop

Be Started up 100% at any load

Less interference to others equipment in workshop (Proved by CE)

IGBT inversion technology &LC series circuit design achieve energy saving up to 15%-30% compared with SCR technology

Easy to operate and maintain

induction heating equipment

Specification

MFP 100D2 160D2 250D2 350D2 500D2 600D2 750D2

Rod diameter 25-50mm 25-70 mm 30-100mm 40-140mm 40-140mm 50-160mm 60-200mm

Rates 0.2-0.25 T/h 0.3-0.37 T/h 0.7-0.75T/h 0.9-1 T/h 1.4-1.5 T/h 1.9-2 T/h 2.9-3 T/h

Rated output power 100 KW 160 KW 250 KW 350 KW 500 KW 600 KW 750 KW

Power capacity 140KVA 230KVA 340KVA 450KVA 610KVA 750KVA 930KVA

Input current 150A 240A 375A 525A 750A 1000A 1125A

Frequency range 0.5～10 KHz 0.5～10 KHz 0.5～10 KHz 0.5～8 KHz 0.5～8 KHz 0.5～6 KHz 0.5～6 KHz

Input Power 380V/50Hz 3phases 4lines (1 neutral line)

Duty Cycle 24houts non-stop

Dimension 840*870*1840 (mm) 1240*970*1940 (mm) 1700*1050*2250 (mm)

Induction annealing

Company Contact:

• Posted By: Chengdu Duolin Electric Co., Ltd

• Phone: +86-28-83930607

• Address: No.112 Hancheng Road, Xindu Industrial Zone, Chengdu, Sichuan Province, China, Chengdu , Sichuan , China

• Email:

• Website: https://www.duolin.com

• Business Description: Duolin electric is a manufacturer of induction heating machine, founded in 1994 - We design, build and repair high quality general purpose, turn key and fully automated induction generators, process development, and personalized consulting for each and every one of our clients.

  Duolin induction heaters can precisely meet your specific needs of induction heating, forging, hardening, brazing, annealing, tempering, hot pipe bending services.

  Our highly experienced team of designer, electrical and mechanical engineers, application experts and sales representatives stand here ready to serve for you.

  Duolin has offered induction heating solution in North America, South American, Europe and most countries in Asia, don't hesitate to contact us for manufacturing or any service at industrial applications, we can bring you not only the machine but full set of service.

  You will benefit from newest induction heating technology.
