High Accuracy Smt Full Auto Screen Printing Machine For Led Assembly - China

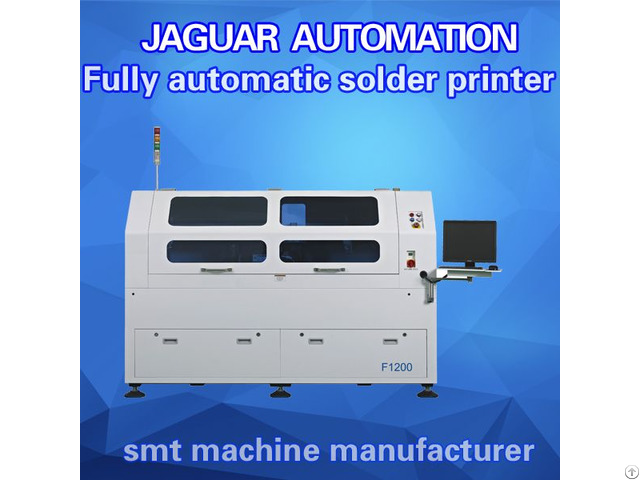

1 - Product Functions: F-1200 a high accuracy lengthen printing robot designed for screen printing or stencil printing in SMT industry.

2 - Product Features: a) Support wide spectrums of PCB size from 50mm x 50mm to 1200mm x 340mm and PCB thickness from 0.6mm to 6mm.

b) High printing resolution: 1 - High positioning accuracy, repeat positioning accuracy ±0.01mm; printing accuracy 0.025mm.

2 - Support glue printing c) Automatic control improves production efficiency, controls quality and saves production cost: 1 - Automatic stencil positioning; 2 - Automatic PCB position calibrating.

3 - Automatic adjustment of squeegee pressure; 4 - Automatic printing; 5 - Automatic stencil cleaning (dry-type, wet-type); d) Adopt company independently developed suspended print head with programmable pressure adjustment.

Support on-line real time pressure feedback and automatic squeegee pressure balancing.

e) Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.

f) Multi-functional PCB positioning and clamping system, for convenient fast and accurate PCB positioning.

g) Upward and downward visual positioning.

h) Built-in image processing system; i) Support 2D, SPC functions.

3 - Applicable pitches of Components a) SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications.

b) IC: support SOP, TSOP, TSSOP, QFN packaging, min.

pitch 0.3 mm; support BGA, CSP packaging, min.

ball 0.2 mm.

c) Printing size: 80mm x 50mm ~1200 mm x 340 mm; d) PCB thickness: 0.6 mm ~ 6 mm e) FPC thickness: less than 0.6 mm (excluding jig) 4 - Applicable PCB Types Applicable to PCB types of LED, mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, space flight and aviation, as well as production and processing of general electronics products * The following data is measured under environment temperature of 25 ℃ and humidity of 60%.

Items Parameters Repeat Position Accuracy ±0.01mm Printing Accuracy ±0.025mm Printing Speed/Cycle Time <15s (Exclude Printing & Cleaning) Products Changeover <5Min Screen Stencil Size/Min 1100mm*300(Standard);730m m*300mm(Optional, pressing plate on guide rail shall be replaced) Screen Stencil Size/Max 1500mm*750mm Screen Stencil Thickness 20mm ~ 40mm PCB Size/Min 80*50mm PCB Size/Max 1200*340mm PCB Thickness 0.8~6mm PCB Warpage Ratio <1%(Based on diagonal length) Bottom of Board Size 15mm (distance from pins to PCB) Edge of Board Size 3mm (distance before PCB clamping) Transport High 900±40mm Transport Direction Left-Right; Right-Left; Left-Left; Right-Right Transport Speed 50-1200mm/sec programmable control
