4w 50 60hz Motors For Electric Incubators Synchronous Motor 49tyd - China

SD-83 is one of our most popular synchronous motor series in world with high life span, low noise, low temperature rise, high temperature insulation, high durable gears.

We have CE Marking Approval and EMC Approval.

Our customers is all over 30 countries, USA, UK, Germany, France, Indonesia, Malaysia, New Zealand.

etc.

Specifications can be made as customer's requirements:

• Rated Voltage: 12V, 24V, 100V, 110 ~ 120V, 200 ~ 240V AC

• Power Frequency: 50/60Hz

• Input Power: 4 W

• Number of Poles: 12 P

• Rotor Speed: 500 ~ 600 RPM

• Output Speed: 0.8~ 72 RPM

• Rotation: CW, CCW, Free

• Start Torque: 500 gm-cm ~ 10Kg-cm (5Kg-cm at 5RPM)

• Rated Torque: 500 gm-cm ~ 20Kg-cm

• Operating Temperature: -10 ℃ ~ 60℃

• Insulation Strength: AC 1500V - 1 Min

• Insulation Class: A, B, F Class

• Lead Wiring: 1007 / 1015 X AWG # 22 X 200 mm

Please let us know the following Parameter if we are lucky to attract your interests:

1 - Voltage & Frequency

2 - Number of revolutions and direction of rotation

3 - Type of output shaft ( Our standard shaft our your customized shaft)

4 - Torque on output shaft

5 - Length of lead wire if you have requirements

Model

SD-83-591

Rated Voltage Range

12V, 24V, 100V, 110 ~ 120V, 200 ~ 240V AC

Output Speed

1-2rpm

Custom speed range

0.8-72rpm

Rated Torque

16kg.

cm

Rotation

CW, CCW, Free

Motor Dimensions

Check following drawing

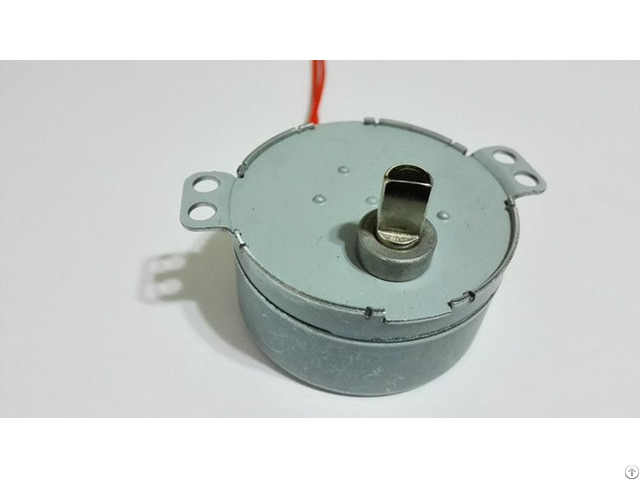

Motor details

Check below detailed pictures
