Wooden Door Design Cnc Router Cabinet Making Machine For Sale - China

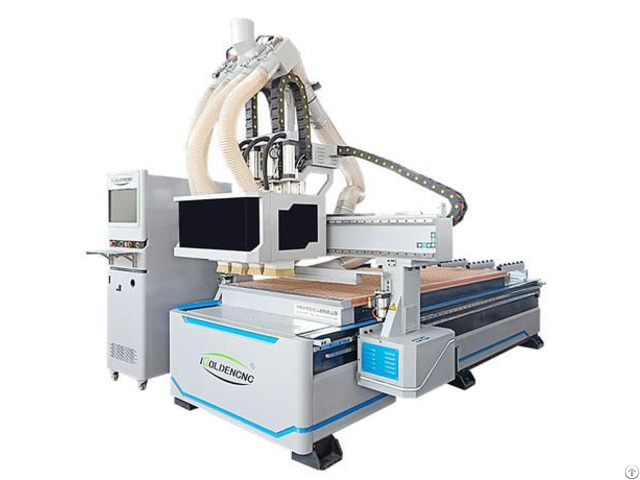

Wooden Door Design CNC Router/cabinet Making CNC Machine For Sale This CNC router is a high-speed, automatic load/unload, heavy-duty CNC routing system for nested based feed through machining.

This CNC machine is used majorly in the production of cabinets, closets, and custom furniture.

The cabinet making cnc machine With hard steel structure, the Kitchen Cabinet Making Machines is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration, and Kitchen Cabinet Making Machine is qualified for mass- producing of furniture.



Cabinet making cnc machine ’s body is strong, high-precision, reliable and durable.

Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.

Carousel tool changing magazine with 16 toolholder forks, the machine can change tools automatically during the work Features of cabinet making cnc machine :

1 - The three-process is smart and economical equipment with automatic tool change.

Through the automatic change of three independent electric spindles, the automatic machining of multi-process is completed.

2 - Lathe bed adopts strong welded steel tube to avoid distortion.

3 - The air cooling high-power spindle is used to achieve precision higher, longer service life, uniform speed, running stable, rapidly change the necessary props at random, saving the machining time and enhancing the working efficiency;

4 - Imported Square Liner Rail, high accuracy, heavy burthen.

5 - The screw rack transmission with high precision is used and servo motor with high resolution and fine mixing is equipped.

The imported straight guide rail is used, with high rigidity and levelness and flexible transmission;

6 - All processes will be completed after the startup of the tool one time to shorten the tool change and matching time, thus the tool is applicable to the product for which the tool has to be changed for several timesg, etc

Working area 1300*2500*200mm

Spindle 4.5KW air cooling*2+6KW air cooling*1

Inverter Fuling inverter

Motor Stepper motor

Driver YAKO

Control system NC Stusio/DSP

Working area Vacuum absorbed table/Aluminum profile+PVC

Guide rails #25 Taiwan HIWIN

Transmission XY helical rack, Z TBI ball screw

Rack Z TBI ball screw with air cylinder

body Welded structure G1

Beam Steel beam

Columns Side hanging steel columns

Control system Independent control box

Lubrication Manual

Color customized

Vacuum pump Optional

Dust collector Optional

Automatic tool setting Tool sensor

Accessories Collect: ER32 1, DSP Rich Auto A11

Handle operate, easy to learn and operate, don’t need connect to PC.

you set the toolpath by the software (Artcam, Type3, etc), then copy it to U disk, then insert U disk to control card, the toolpath will show in the 2, hand controller.

Safety Protection System

The BCM Series has the unique safety protection system of BCAM products, and provides external emergency stop function for equipment users.

This function can effectively protect the personal safety of the equipment users, meets European safety CE standards, and is very popular among users.

3, Heavy Body

8mm thickness heavy duty body

4, T-Slot Table

T-slot use galvanized aluminum alloy : More durable, beautiful, and strong.

Cabinet making cnc machine applications:

Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch process any wooden products, antique furniture, crafts gifts, relief processing.

1 - WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2 - Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
