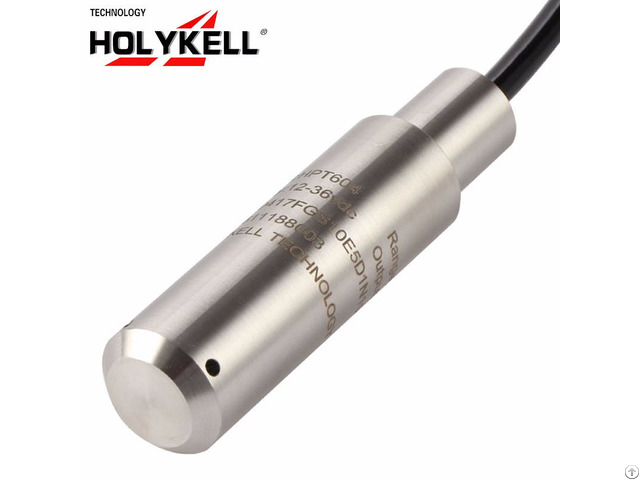

Holykell Hpt604 Oil Level Measurement Transmitters - China

Why Choose HOLYKELL HPT604 Level Sensor? 1 - 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1 ms response time;Its service life is 2-3 times of similar products.

2 - Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;Anti-interf erence is enhanced by 300%, the stability is over 10 years.

3 - Automatic temperature compensation, -40 ~ 85℃, auto-correction temperature drift.

4 - Five layers of seamless and waterproof dustproof connection design, international level IP68;12 mm waterproof and oil-proof cables, the service life is more than 10 years.

5 - Filter cover can be filter <0.6mm impurities Overload above 20bar

6 - Professional Explosion-Proof Design Product Description of Holykell Level Sensor HPT604 Level Sensor:

HPT604 high quality (fuel level sensors) adopt imported U.S.A MEAS TE silicone core, ensure the factory the highest accuracy is 0.1%.

5 layers of seamless and waterproof dust-proof connection design, international level IP68; 12 mm waterproof and oil-proof cables, the service life is more than 10 years.

Product Description What's the Specification of Holykell Submersible Type HPT604 Diesel Fuel Tank Probe?

Name

HPT604 tank probe

Measurement Range

0.1…500mH2O

Overload pressure

1.5 times rated pressure

Failure pressure

3 times rated pressure

Accuracy

±0.15%F.

S, ±0.25%F.

S, ±0.5%F.

S

Stability

Typical value: 0.1%F.

S, Maximum value: 0.2%F.

S

Operation temperature

-40℃~85℃ or -40℃~100℃(Customized)

Compensation temperature

-10℃~70℃ or 20℃~80℃(Customized)

Medium compatibility

All corrosive medium compatible with 1Cr18Ni9Ti and 316L

Electrics feature

Two-wire type

Three-wire type

Four-wire type

Signal output

4~20mA

0/1~5V

0~10V

0.5~4.5V

0~100mV/V

RS485/EIA485

Power supply

12~36Vdc

10~36Vdc/ac

15~36Vdc/ac

5Vdc

10Vdc

10~30Vdc

Load resistance

(U-10)/0.02(Ω)

>100kΩ

Insulate

>100MΩ@100V

Electrics connector

Waterproof fixed cover + bipolar cycle matrix + sealing ring

+ sealgum + glue feed, etc, five rank sealed.

protection rank: IP68

Pressure junction

Various embedded structures suit to different applications 1/8, 1/4 or 1/2

Response time

≤10 ms (standard); ≤1 ms (Customized)

Pressure form

Gauge pressure: G, Absolute pressure: A

Certification

Explosion proof certification, CE certification.

Rosh certification
