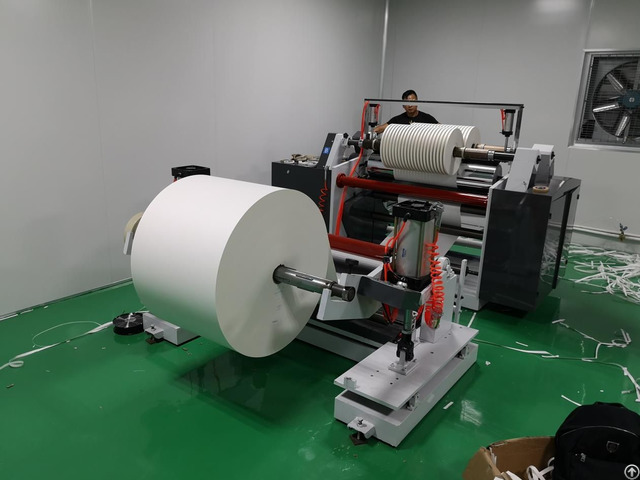

Speed Strip Splitter With Center Surface Coiling Cutting Machine - China

ESecond, the machine main components

The machine consists of corrective unwinding institutions, cutting structure, the rolling bodies, transmission and electrical control.

Agencies main configuration and specifications

(A) unwinding institutions

The device has a manual aspect of offset can be eliminated due to the tension of raw material at both ends arising from Bohou or paper core non-circularity different and wrinkled.

Unwinding tension to the high linear magnetic powder brake actuator output torque balancing the tension fluctuation can be reduced to a minimum.

Unwinding specifications: maximum width of700mm, phi diameter 1000mm

Paper tube clamping method: air shaft clamping

Specifications: 3in 1 root of the air shaft 1 piece

A pneumatic gun 1 piece

Tension control: closed-loop tension control.

The output control: 200N.

M 1 piece

magnetic brakes 1 piece

Correction perform: tracking the substrate by the photoelectric eye correction controller for a given signal, the motor drive ball screw execution.

Specifications: photoelectric eye 1 piece

Two linear bearings4 piece

A corrective institutions 1 piece

The photoelectric eye fine-tuning 1 sets

(B) cutting machine configuration

The agency uses carbide precision disc disc knife (slitting relatively thick aluminum foil, paper and other materials) or (and) straight knife cutting (slitting general plastic film), neat incision, long life, cutting up and down knife shaft width adjustment processing, between the upper and lower blade shaft gear speed matching.

Turning the handwheel implementation under the knife, the knife continues to rotate automatically rely.

Tool axis: under the knife shaft each one

2 locking device: a fast by knife device, able to lock on the knife shaft, to avoid slitting knife from the up and down or move due to quality problems.

Specifications: a rocker arm

A locking shaft

With gear

A worm gear

3 - Row waste: by blowing high pressure air feed tube diversion, the scrap material to exclude

Specifications: 1 fan

A duct

4 main wall: steel wall panels, effective shock absorption, enabling machine high-speed and stable operation.

Specifications: 30MM

5 - Guide rollers: chrome plated, polished.

Specifications: φ80 × 750mm certain

(C) the rolling bodies

The agency uses the left-right axis biaxial winding winding with pressure arm balance internal and external pressure.

The transmission uses two independent magnetic particle motor drive uniaxial tension adjustable.

Winding Specifications: width up to 700mm, diameter 600mm(or diameter 420mm)

Paper tube clamping means: air shaft clamp (according to customer material specifications)

Specifications: 3in 2 root of the air shaft

Rewinding pressure: differential pressure pneumatic compression, the pressure can be adjusted by pneumatic pressure regulator

Specifications: Pressure arm 2

Cylinder 2
