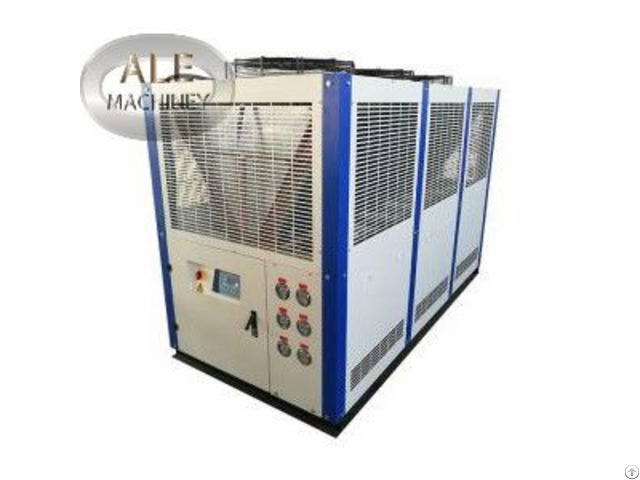

3hp 5hp 8hp Small Glycol Chiller For Micobrewery - China

Chiller specification(take 6HP product as example):

1 - Function: Glycol cooling

2 - Model: ICA-6 3 - Cooling capacity: 9.6kW, 8254kcal/h; The

cooling capacity is based on the ambient temp.

35℃, glycol water (40%) the inlet water temp.

0℃, target outlet water temp.

-2℃

4 - Power source: 3 phase 400V, 50Hz

5 - Gross power: 5.3kW, rated current: 10.2A

6 - Compressor: Brand: Copeland; Flexible scroll type; Power: 4.7kW; Compressor quantity: 1 set

7 - Condenser: Efficient inner fin coil, max.

pressure: 3.5MPa; Fan type: Low noise enhance ABS plastic fan wheel; Fan quantity: 2 sets 8 - Evaporator: water tank volume: 70L; pipe size: DN25; Water max.

Pressure: 1.5MPa; Water flow: 1.4m3/h

9 - Pump: stainless steel centrifugal; Power: 0.37kW; Head: 21m

10 - Refrigerant: R404A; Throttling type: thermal expansion valve

11 - Protector: Pressure, overload, anti-freeze, delay, over-temperature, flow

12 - Noise lever: 65 dB(A)

13 - Unit weight: 220kg

14 - Dimension(LxWxH, mm): 1220x720x1325 Feel free to give us your opinion.
