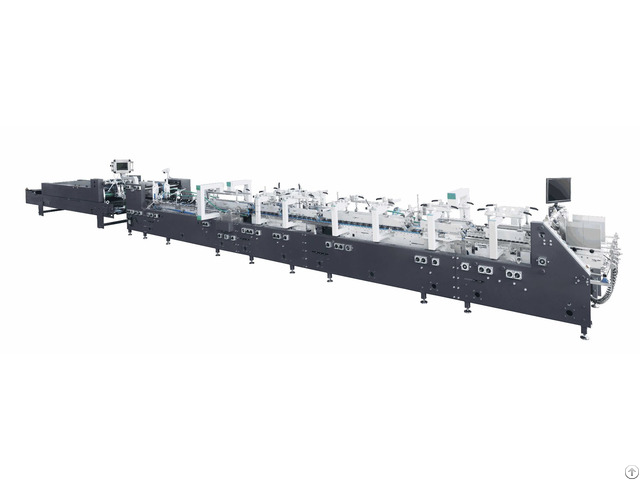

A Zh 1100s High Speed One Side Box Gluing Folding Machine - China

Characteristics:

1 - Driving by synchronous belt, ensure smooth and accurate running.

2 - Inverter driving, stable and power saving.

3 - Use electric adjust, easy operate.

4 - Automatic continuous feeding, use multiple belt with vibrating motor, (for higher configuration use drilled suction belt), to keep the feeding stable.

5 - Automatic counting and kicking, quantity can preset.

6 - Conveyer pressure adjustable according to the box to ensure best quality.

2 - Main technical parameter:

Model ZH-A1100PC

Suitable material Card board, E flute corrugated board

Max method Automatic continuous feeding Max mechanical speed 450m/min

Overall dimension 15500*1700*1800mm

Weight 8T

Power consumption 19KW 3 - Standard & Optional configuration list Configuration Units Standard Optional

1 Feeder section √ 2 Paper Alignment Section √ 3 Pre-fold Section √ 4 Crash lock bottom section √ 5 Upper paste barrel equipment √ 6 Down pasting equipment √ 7 Gluing system √

8 Grinder device √

9 Plasma treatment system √

10 Folding and closing section √ 11 Trombone section √4 - Machine configuration

Main motor Siemens

PLC Siemens

Inverter VEICHI

Touch screen VEICHI

Feeder belt NITTA JAPAN

Ribbed belt Hutchinson

Bearing NSK JAPAN

Plain belt NITTA Japan

Low voltage apparatus Schneider

Delta servo system For 4&6 corner box Form Taiwan

Glue spray For 4&6 corner box KEQI Brand gluing system

5 - Box size Straight line box double sides box crash-lock bottom box 4-corner box 6-corner box

A MAX 1100 1100 1000 960 950 MIN 180 200 180 180 300

B MAX 1100 900 1100 800 800 MIN 70 120 70 80 80

C MAX 400 200 250 150 150 MIN 15 20 30 25 25 6 - Feature

1 - Feeder section

Equipped with vibrating motor.

With independent transmission, low noise, with front adjustable wheels, max working capacity can be achieved.

Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.

Feeding knifes are equipped with pneumatic mechanism for smoother feeding.

Configure the display, real-time monitoring of the paper is normal

2 - Paper alignment system

Automatic alignment system to correct the paper feeding, avoid the paper going to sides.

UV destroying device and dust removing device for better gluing effect.

3 - Bottom lock section

Configure the spray gun system for automatic spray.

Lock-bottom assembly mechanism with high elastic hooks is of ideal design, fast and easy operation 5 - Pressure section

Adjust the pressure with the upper and lower belts.

For flute A, B corrugated board, overlapping and jogger devices are equipped to ensure box gluing well.

After kicker is set up, whatever speed the machine runs, the kicker can automatically follow, no need to reset it.

7 - Standard Price:

Option:

8 - Delivery time: 40 days

9 - Payment terms: 1)T/T.

30% deposit in advance, and 70% balance payment before shipment.

10 - Our service

1 - One year guarantee time.

2 - If parts (except wearing parts) are broken within guarantee time (it is not caused by human factor), they will be changed for free.

The client should pay for the cost following:

1 - Visa fee

2 - Air ticket
