Turf puncher helps alleviate waterlogging and deep aerates the ground to promote healthy growth.

The turf puncher de-compacts the soil on sports pitches by inserting equally spaced holes in the turf which allow water and air to filter through to the grassroots.

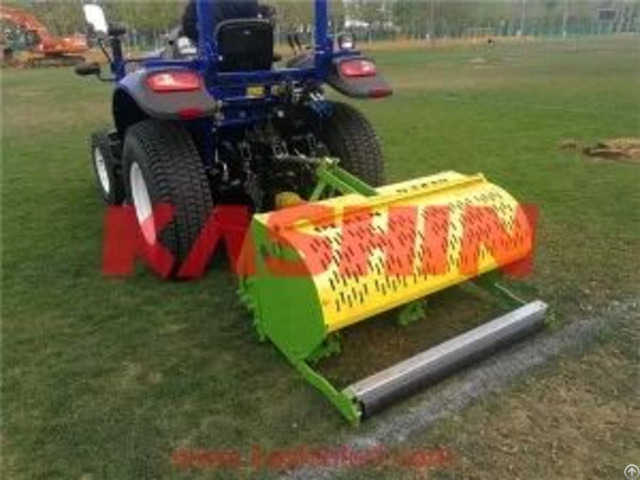

KASHIN Turf Equipment from Weifang, Shandong, China produces KASHIN turf puncher DK120 - This turf puncher DK120 has a 3-speed gearbox, which will match up to virtually any tractor.

The popular turf puncher 120 is an ideal machine for use on greens and most sports turf surfaces where limited access or horsepower is available.

KASHIN DK120 TURF PUNCHER INTRODUCTION One of the challenges that face the turf care professional is the battle against compaction.

The KASHIN turf puncher DK120 has been specially designed with a wide choice of tines for aeration which assists both drainage and irrigation.

It is also through these cavities that the plant develops and extends its roots system giving stronger and healthier turf.

DK120 Turf Puncher is well suited to lower hp tractors where access is restricted or a lighter footprint is required.

These highly productive machines are easily adjusted and work to a maximum depth of 25cm (10″) and use 12mm or 19mm (½" or ¾") tines or mini-tines which are often used for Summer aeration.

DK120 Turf Puncher is an efficient machine for use on sports fields and all areas of the golf course.

The DK120 model is light enough for application on the golf greens, whilst strong enough for hard soils.

KASHIN DK120 TURF PUNCHER ADVANTAGE (a) Unique Adjustable Parallelogram Forced Heave Shatters compaction in any ground conditions.

Versatile with single-point adjustment for optimum results and hollow coring (b) 3-Speed Gearbox Matches your tractor's ground speed exactly to achieve the desired hole spacing.

Creep speed tractor gear not essential (c) Sealed Bearings / Not Bushings Long maintenance-free life (d) Higher Working Speed Greater working capacity (e) Useable Playing Surface Aerate at any time without interruption to play (f) Simple Tine Design Easy to change and cheap to replace (g) 10" (250 mm) Penetration Relief of compaction, removing any hardpan of at depth up to 10" (250 mm) (h) 2.5" (65 mm) Spacing Between 0.5" (12 mm) Tines High density of aeration SPECIFICATION

Model DK120

Working width 48″ (1.20m)

Tractor Speed @ 500 Rev's at PTO -

Spacing 2.5" (65 mm) Up to 0.60 mph (1.00 kph)

Spacing 4" (100 mm) Up to 1.00 mph (1.50 kph)

Spacing 6.5" (165 mm) Up to 1.60 mph (2.50 kph)

Hole Spacing Side-to-Side 4" (100 mm) @ 0.75" (18 mm) holes

2.5" (65 mm) @ 0.50" (12 mm) holes
