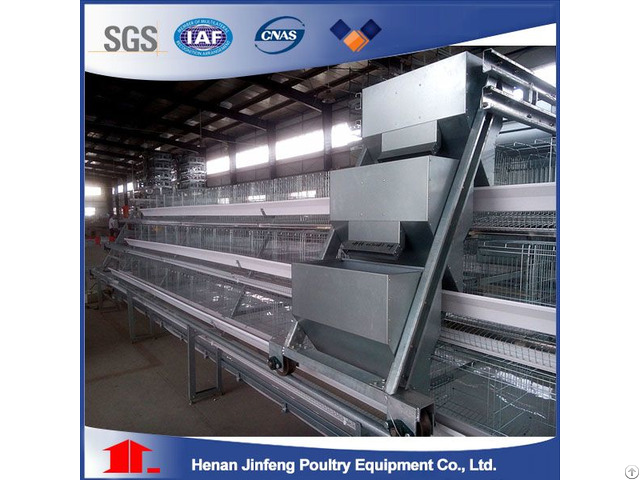

A Frame Layer Battery Cage System With Manure Belt - China

 The A Frame System Layer Battery System with Manure Belts from Jinfeng is Cold Galvanized or all Hot Dipped Galvanized Equipment, we produce this special cage system because it gets much better chicken manure collection effect and lower cost than H Frame.

it also can be used in open and close house according to farmer’s design.

the Manure Collection Belts are made in Italy, more durable because of its high quality.

The System Advantages:

 Saving more cost because its much lower investment as H Frame Cage System;

 The System both Suitable to use in rainless or tropical district, because the chicken Manure can be collected as the H frame immediately outside from the chicken house;

 It can save more space and raise greater number of birds is reared per unit, it helps in identifying poor producers and prompt culling;

 Easily to deliver and installation in clients farm and make maintenance because it is just one belts for each line(row), and same installation method as A frame cage system;

 This system also can be designed for H frame cage system for layer, pullet, broiler and parental stocks(breeding chickens);

 If it is designed as layer chicken house, it can help in production of clean eggs because the Egg conveyor system can deliver all eggs from different houses to egg storage room as the H frame System; Feed efficiency and egg weight are better in caged birds than the laying flock under deep litter system;

 Easy control of parasitic disease like coccidiosis and worm infestation because the caged birds can make better epidemic prevention;

 Prompt steps to control feed wastage because of the longer design feed trough edge;

 The cage method of housing is ideal for the area of moderated climate conditions where the day temperature in summer is not high or fall too low;

 Egg production of caged layer was reported to be more than those kept in deep litter system; The overlap parts is bigger so the chicken house can get much better ventilation, it can be used both in open or close house according clients’ needs.

Technology Descriptions and Specifications

 Cage Frame System Materials: Q235A Steel; feed troughs are made of PVC or made by 1.0--1.20mm Aluminum Zinc plates with round edge for convenient cleaning, solid and durable.

 Surface Treatment: Hot dipped Galvanization by Jinfeng Hot Galvanization Production Line;

 Cage Dimension can be changed according to different kinds of chickens;

 Battery Cage: any dimension of Cages are available from clients in A frame cage system; Battery Cage System tiers: 2--5tiers available optional;

 Automatic Feeding System: the Hopper Thickness is 22mm, and the Volume is upon the Birds quantity of each row.

the Feed Dropping Average Equipment is under every hoppers.

 If for layer chicken farms, Egg-collection System will be equipped with the Transverse Egg Conveyor System which can deliver all eggs from different houses to egg storage room.

 Automatic Drinking System: Square or Round pipes(thickness 2.5mm) with stainless steel nipple drinkers, and constituted by Water Pressure Regulators, filters and dosers from DOSATRON

 The Manure Collection Belts and Egg collection belts are imported from Italy.

It can equip with automatic egg collection system and automatic feeding system also with automatic water supply system, automatic system increases the working efficiency, and save work labor.

After many customers used over the Chinese market, it was be proved a successful cage system for the chicken.

Company Contact:

• Posted By: Henan Jinfeng Poultry Equipment Co.,Ltd..

• Phone: 15093555057

• Address: North of Jinfeng Road Xiping County , Zhumadian City, Henan Province, China

• Email:

• Website: https://www.jinfengpoultry.com

• Business Description: A Frame Automatic Layer Battery Cage including the Automatic Feeding & Drinking System, Egg-Collection System, Chicken Manure Removal System andChicken

  House Environmental Control System.
