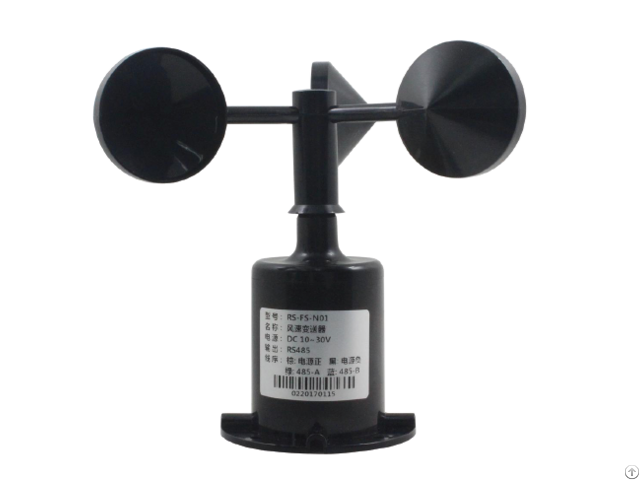

Three Cups Of Outdoor Weather Monitoring High Accuracy Wind Speed Transmitter - China

The three-cup design concept can effectively obtain wind speed information.

The shell is made of polycarbonate composite material, which has good anti-corrosion and anti-corrosion features, which can guarantee the long-term use of the anemometer is free from rusting, and the internal smooth bearing system ensures the accuracy of information collection.

Features:

Measuring range: 0-70m/s, resolution 0.1m/s.

2 - Internal anti-electromagnetic interference treatment.

3 - The bottom outlet method is adopted to eliminate the aging problem of aviation plug rubber pads, and it is still waterproof after long-term use.

Free cloud platform.

4 - Using high-performance imported bearings, low rotation resistance, accurate measurement.

5 - Polycarbonate shell, high mechanical strength, high hardness, corrosion resistance, no rust, and long-term use outdoors.

6 - The structure and weight of the equipment are carefully designed and distributed, with a small moment of inertia and sensitive response.

7 - Multiple output modes are optional: RS485, 0-5V, 0-10V, 4-20mA, or pulse output.

Parameters

Power supply: 10 ~ 30V DC

Measuring range: 0 ~ 60m / s

Accuracy: ±(0.2+0.03V)m/s

Resolution: 0 .

1 m / s

Power consumption: 0.4W

Response Time: ≤ 0.5s

Start wind speed: ≤ 0.2m / s

Working Temp: -20℃~+60℃, 0%RH~80%RH

Output signal: RS485/0-5V/0-10V/4-20ma/P ulse
