Mechanical Fine Screen - China

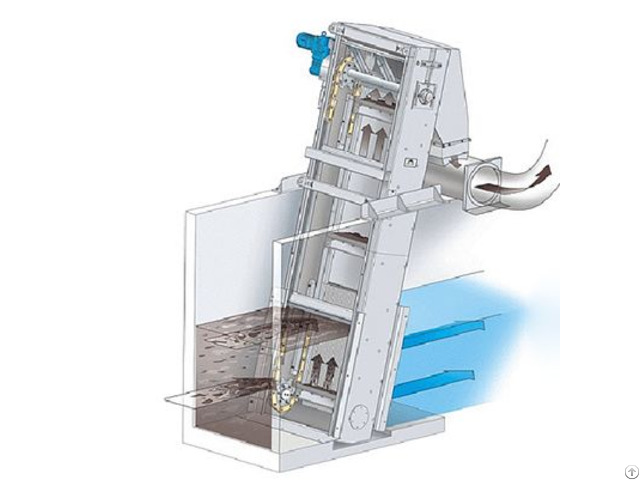

The screen ladder grille is mainly composed of the main components such as the driving device, the frame, the traction chain, the screen plate with the lifting ladder, the washing system and the electric control system.

The drive motor is installed on the main shaft in the positive direction of the frame.

Driven by the transmission chain, the mesh plates on both sides will extract the dirt trapped within its length from bottom to top.

When it reaches the upper part, it will pass the steering function of the sprocket.

Under the action of the flushing water of the top flushing device, the unloading work is automatically completed.

The drive device of the mesh plate ladder grille is located on the upper part of the frame, which is an imported brand SEW shaft-mounted reducer.

Screw-type adjustment devices are installed on the front and rear sides of the frame to adjust the tightness of the transmission chain.

The frame of the mesh plate ladder grille is an integral cuboid rigid structure assembled and welded by stainless steel plate and section steel.

A water inlet hole is opened at the water-facing end of the lower part of the frame, guide rails are arranged on the front and rear walls of the frame, and an internal slag collecting groove is also arranged on the upper part of the frame, which extends to the outside of the machine.

The rack is installed in the grid well, and the gap between the two sides of the rack and the grid well is the channel for the filtered water from the grid.

Diversion baffles are arranged on both sides of the water-facing end of the rack, which can prevent floating garbage from passing through while diverting.

Company Contact:

• Posted By: Wuxi Dajiang Environmen tal Technology Co., Lt d.

• Phone: 8613961861780

• Address: 302, Building 11-4, Hongyi Road, Xinan Town, Xinwu District, Wuxi City, Jiangsu Province, China, WUXI , Jiangsu , China

• Email:

• Website: https://www.wastewatermachinery.com

• Business Description: More than10 years experience, ISO, CE ,SGS certificated, 3D design ,one hour reach shanghai port, this is howwe keep good quality and competitive prices for global valued customers.

  Dagyee main Wastewater treatment products:

  Dissolved air flotation

  Lamella clarifier

  Shaftless screw conveyor

  MBBR Filter

  Sludge screw dewatering

  Quartz sand filter

  Polymer PAM preparation unit

  Screw Flight

  Decanter centrifuge

  Screening

  If any product meed your demand, please feel free to contact us.

  Catalog and technical sheet can be offered if price content.

  We're sure your any inquiry or requirement will get prompt attention.
