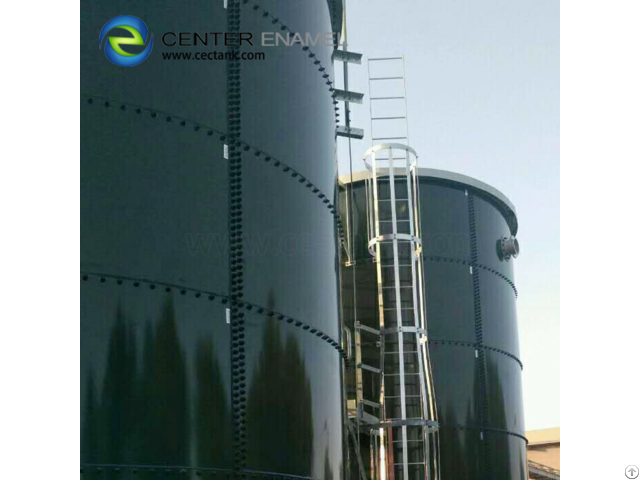

Glass Lined Steel Tank With Double Membrane Roof For Biogas Storage - China

Glass Lined Steel tanks are made of Glass-Fused-to-Steel which combines the strength and flexibility of steel and the corrosion resistance of glass.

Glass-lined steel tank provides many advantages over standard epoxy coated or welded painted storage tanks.

Glass-lined steel tanks are widely used as biogas storage tanks.

Excellent Leakproofness performance of the Glass Lined Steel biogas storage tank 1 - Anti Acid and Anti alkali: can be used liquid or gas whose PH is 3 - 11 - Our enamel coating steel tanks can be used for biogas digester, wastewater treatment, sewage treatment, industrial effluent treatment.

2 - Anti Static property: high performance of anti-static makes it can be used for any kind of water treatment.

3 - Anti-abrasion: the steel plate contains titanium makes the glass fused to steel sheet twice harder than the normal steel sheet.

4 - Anti-corrosion: The 2 layers of enamel coating forms a superfine glass foam-like structure enabling the materials' excellent flexibility and durability.

Our GFS tanks can be used in any harsh environment, ground or underground.

Glass Lined Steel tanks Specifications Coating color dark blue, dark green, white, and customized

A standard steel plate size effective size 2400mm x 1200 m

Steel plates thickness 3mm - 12mm, depends on the diameter & height

Coating thickness 0.25mm - 0.4mm, two coatings internal and external

Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion 3, 450N/cm

Elastic same as steel sheet, around 500KN/mm

Hardness 6.0 Mohs

Service life >30 years

Spark test >1500 V

Permeability gas and liquid impermeable

Easy yo clean smooth, glossy, inert, anti-adhesion

Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds Other advantages of Glass Lined Steel Biogas Storage Tanks Short construction period, cost-effective tank solution

Superior corrosion resistance, service life is more than 30 years

Easy to install, no need for big installation equipment and/or very skilled labors

Tank volume can be easily expanded

It can be dismantled, removed and relocated

Elegant appearance, tank color can be customized About Center Enamel Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia.

Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc.

international standards.

CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc.

applications.

Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.

The superior product quality and prompt service gain us worldwide recognition.
