Electrothermal Constant Temperature Blast Drying Oven - China

Forced Air Drying Oven, Food Dehydrator, Food Drying Oven, Industrial Drying Box。

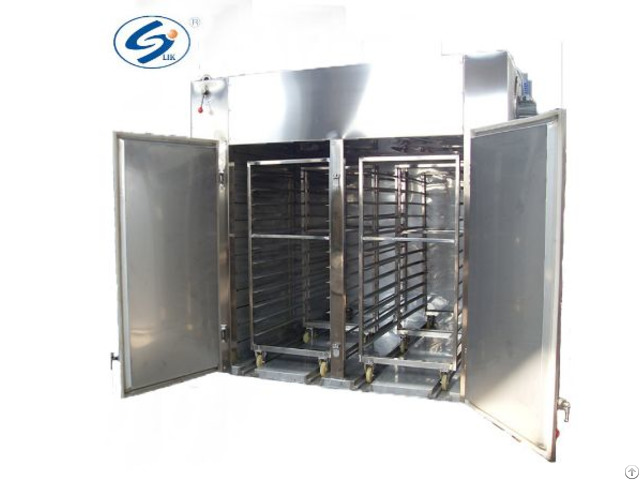

High Temperature Hot Air Circulation Drying Oven Application This kind hot air oven is suitable for heat solidifying, drying dehydration of raw material in pharmaceutical, chemical, foodstuff, industry.

Such as Chinese traditional medicine, herbal extract, tablet of drink, granules, powder, pigment, dehydrated vegetable, dried fruit and so on.

Also reach the GMP requirement.

Suitable for product hot solidification and dry dewatering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries.

Such as: raw material medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric

component etc.

Characteristic function(High Temperature Hot Air Circulation Drying Oven) 1) Hot air is circled inside the oven, so ensure a high drying efficiency and save energy.

2) It used enhanced ventilation, and equipped with adjustable air distributor, lead to a uniform drying.

3) It's batch operation, so can adjust process condition anytime.

Thus can change product from time to time, so very suitable for drying high-value product or small-batch product.

4) Feed and dry material in tray, easy for load and unload, not easy cause any damage for the raw material, clean conveniently.

5) With low noise and steady operation, and the temperature can be controlled automatically.

Total conform with GMP requirement.

6) With a widely applied field, can be suitable for all kinds of raw material.

It's a comprehensive dryer.

Model specification Dry amount each(kg) Equippedpower(kw) Consu-mption of steam(kg/h) Area of radiation(m2) Amount of air(m3/h) Temp- erature difference between up and low(oC) Amount of drying tray to be equipped Overall dimensionsW×D×H(mm) Equip- ped drying trolly Equip-mentweight

LIK-I 120 1.1 20 20 2800 ±2 48 2430×1200 ×2375 2 1200

LIK-II 240 2.2 40 40 5200 ±2 96 2430×2200 ×2433 4 1500

LIK-III 360 3 60 80 8000 ±2 144 3430×2200 ×2620 6 2000

LIK-IV 480 4 80 100 9800 ±2 192 4460×2200 ×2620 8 2300

LIK-100 120 0.45 18 20 3450 ±2 48 2300×1200 ×2000 2 1500

LIK-200 240 0.9 36 40 6900 ±2 96 2300×2200 ×2000 4 1800

LIK-300 240 0.9 36 40 6900 ±2 96 4460×1200 ×2290 4 1800

LIK-400 360 1.35 54 80 10350 ±2 144 3430×2200 ×2000 6 2200

LIK-500 360 1.35 54 80 10350 ±2 144 2300×3200 ×2000 6 2200

LIK-600 480 1.8 72 100 13800 ±2 192 4460×2200 ×2290 8 2800
