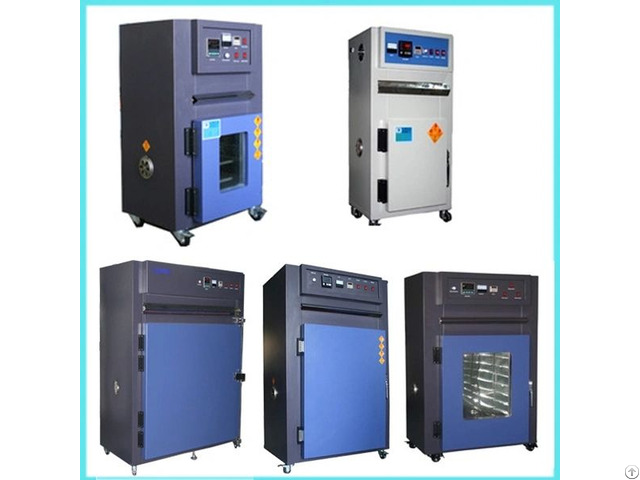

Industrial Environmental Hot Air Electric Oven Machine - China

Main features: 1 - Microcomputer electronic digital control, high precision & reliability.

2 - High temperature endurance & non-aging.

3 - Observation view window, easy operation.

4 - Forced circulation air, the temperature rise fast, even distribution.

5 - PID control, double overheating protection, safety and reliability.

6 - Two groups of moving plates can be adjusted height.

9 Best after sales service: One year free parts maintenance.

7 - Meet international test standards.

8 - Customization is available & welcomed.

Technical parameters: Please refer to the technical specifiation sheet as attached below.

Technical Specifications

MODEL YPO-072 YPO-270 YPO-480 YOP-600 YPO-720

Internal Sim.

WHD(mm) 450×400×400 600×900×500 800×1000×600 1000×1000×600 1200×1000×600

External Dim.

W×H×D(mm) 750×1200×550 1050×1650×740 1200×1700×840 1400×1750×840 1750×1750×840

Temp.

Range Room Temp.

+10ºC---+200ºC(300 ºC)

Ferformance Temp.

&Humi, Constancy ±0.3ºC

Temp.

&Humi, Constancy ±0.1ºC AT 200ºC;±1.5% AT 300ºC

Indication Resolution 0.1ºC/1ºC

Heat-up Time( min.

) Approx.

60min.

Material Exterior Iron Sheet+Baked Enamel

Interior SUS#304 stainless steel piate

Insulation Fiberglass Wool

SYSTEMS Cirulation Circle Fen

Heating Chrome Steel Strip Wire Heater

Controller Electric Digital Control+S.S.R.

door Single-Wing Double-Wing

Other Components Environmental Control Indicator Lights, Experiment Separation Shelves(2 pcs).

Sevey Devices Overheating Prevention Circuit breaker, Control System, Breakdown Indicator Light.

Power Source[K.W.] AC 1Ψ 220V ; 3Ψ 380V 60/50Hz Any requested size and working temperature range(max.

1200ºC) can be customzied.
