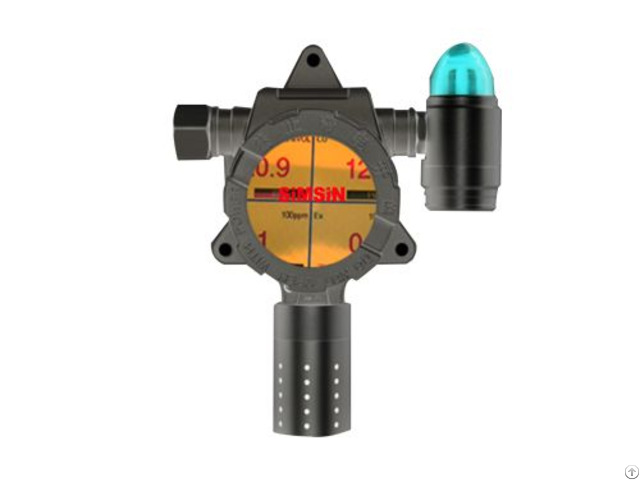

Product Name: Industrial Wired Dust detector Model No: SS-ENVIR-DUSTWD4P

Product Description:

The explosion-proof dust concentration detector is developed and produced according to industrial design standards, which is suitable for continuously monitoring the total dust concentration in the atmosphere in coal mines and other explosive hazardous working environments.

To meet the needs of enterprises to monitor the dust concentration in the workplace, with real-time alarm function, can accurately and timely reflect the dust pollution status in the dust workplace.

The dust concentration detector is composed of sampling head, detection device, single chip microcomputer system and pumping system.

It has the characteristics of easy to carry, fast and accurate measurement, high detection sensitivity, stable performance and simple maintenance.

Thanks to the use of new technologies such as laser technology and highly reliable pumping system, the sensor is more high-quality and technologically superior.

With explosion-proof function, can be directly installed in the explosive area for use.

Stable performance, easy installation and maintenance, widely used in steelmaking, power generation, petroleum, chemical industry, medicine, building materials processing, coal mining, mining, manufacturing, packaging and other places.

Detection of bag damage, recovery of powdery materials, monitoring of total product delivery, or monitoring of boiler smoke emission concentration of various sizes and fuels.

Main Features:

1 - The rated working current is small, which greatly reduces the burden of the total power supply on site;

2 - Wide input voltage range, the instrument can work normally within the input voltage of 12V ~ 24V DC(intrinsic safety power supply);

3 - Absorbs and digests the advanced dust detection technology at home and abroad, uses the light scattering principle to detect dust, and calculates the detection data by the microprocessor to directly display the dust mass concentration and convert it into data signal output;

4 - Infrared remote control is used to adjust the sensor parameters to realize the adjustment without opening the cover, which is easier to adjust and calibrate.

Main Application: With explosion-proof function, can be directly installed in the explosive area for use.

Stable performance, easy installation and maintenance, widely used in steelmaking, power generation, petroleum, chemical industry, medicine, building materials processing, coal mining, mining, manufacturing, packaging and other places.

Detection of bag damage, recovery of powdery materials, monitoring of total product delivery, or monitoring of boiler smoke emission concentration of various sizes and fuels.

Technical Parameters:

1 - Detection principle Principle of light scattering detection

2 - Power Supply DC24V 3 - Measuring object Workplace dust detection, dust environment monitoring

4 - Measuring range 0.1 mg/m³～1000 mg/m³

5 - Measurement error ±10%

6 - repeatability ＜5%

7 - Operating temperature 0℃～40℃

8 - Working humidity ＜95%RH

9 - Atmospheric pressure 86kPa～106kPa

10weight ≤2.0kg

11 - Explosion-proof mark Combustible dust environment ExibD21 IP65 T120℃

12 - Explosive environment ExibII B T4 Gb
