Aluminum Alloy Trough Deck Roof Bolted Steel Liquid Tanks For Chemical Storage - China

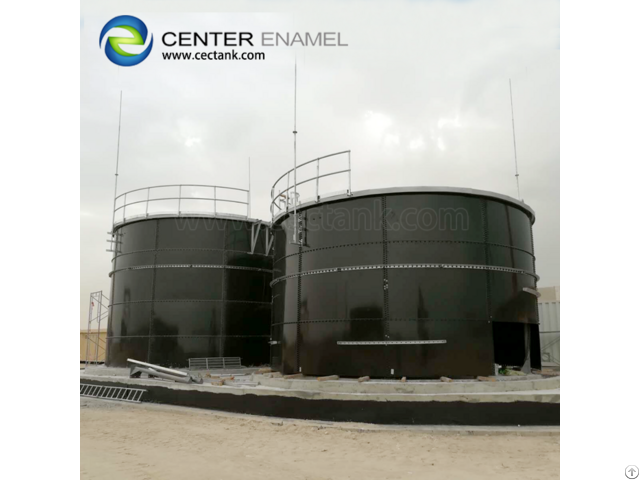

Brife introduction of Bolted Steel liquid storage tank Bolted steel liquid storage tank are known for their versatility, durability, and cost-effectiveness.

They can be used in a great variety of applications and are designed for maximum efficiency.

Our bolted steel liquid storage tanks range the size from 20m3 to 20, 000m3 .

It is the integration tank which sealed by high corrosion bolts and flexible sealant .

Common uses for our bolted steel liquid Storage Tanks include the storage of fertilizer solutions, agricultural chemicals, water, liquid feeds and plant foods All of our tanks are rugged, corrosion resistant and easy to install with no seams, welds or joints to leak or rust.

Now our bolted steel liquid storage tank that meats NSF61 certification to ensure the safe of drinking water, and also the design comply with AWWA D103 – 09, OSHA, Europe standards and Australia standards .

We have the most advanced production line in China, which secure the quality and the quantity of our steel tank .

All of our steel sheet is Ti – rich ATR 310 ( Enamel special steel sheet ) greatly improve the corrosion resistance and solve the fish scale of nomal steel sheet .

Meanwhile the ATR 310 enamel special steel sheet which is our patent since 2005, working with one of the largest steel company “ Angang ” in china .

Bolted Steel Liquid Storage Tank Specifications Coating color dark blue, dark green, white, and customized

A standard steel plate size effective size 2400mm x 1200 m

Steel plates thickness 3mm - 12mm, depends on the diameter & height

Coating thickness 0.25mm - 0.4mm, two coatings internal and external

Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion 3, 450N/cm

Elastic same as steel sheet, around 500KN/mm

Hardness 6.0 Mohs

Service life >30 years

Spark test >1500 V

Permeability gas and liquid impermeable

Easy yo clean smooth, glossy, inert, anti-adhesion

Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds What kinds of roof can be selected ? 1 - Glass fused steel material roof 2 - Aluminum sloped deck roof 3 - Glass reinforced polyester roof 4 - Single / double membrane roof 5 - Aluminum geodesic dome roof Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia.

Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc.

international standards.

CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc.

applications.

Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.

The superior product quality and prompt service gain us worldwide recognition.
