Three Axis Simulation Turntable - China

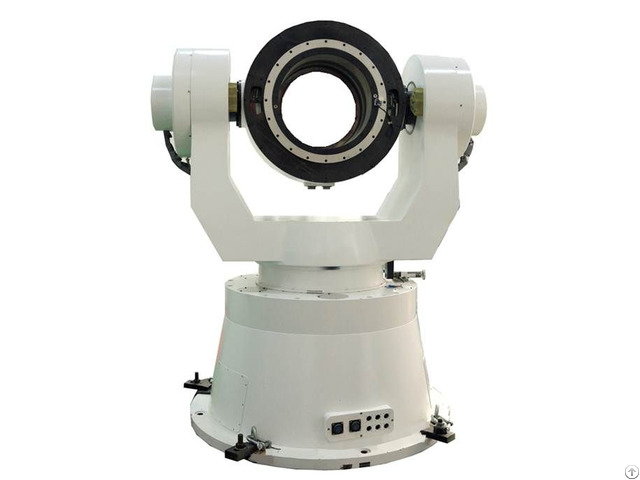

Three-Axis Simulation Turntable Inner Axis

(roll) Centre Axis(pitch) Outer Axis

(azimuthal) Function This device has the function of simulation, position, rate and Swing; It can simulate the three-dimensional motion of the vehicle, it is used in the semi-physical simulation system of the ground, it provide a clean and real sports environment for the load such as the warhead and the seeker and also can provide the benchmark of precise single, two axis and three axis positioning and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems.

Axis Orientation Vertical(UOO) Payload Weight 20-80kg Load Dimension Ф400×400mm Table flatness 0.01mm Degree of Triaxial Intersection 0.5mm Perpendicularity of Two-Axis ±3″ ±3″ Motion Error of Main Axis ±2″ ±3″ ±3″ Angular freedom ±150° ±65° Continuous Position Accuracy ±2″ ±3″ ±3″ Position Resolution 0.36″ 0.36″ 0.36″ Rate Range ±0.005°/s~±800°/s ±0.005°/s~±400°/s ±0.005°/s~±200°/s Rate Resolution 0.001°/s 0.001°/s 0.001°/s Peak Acceleration 2500°/s2 1500°/s2 800°/s2 System Bandwidth 8Hz 6Hz 4Hz Conductive Slipring 80 rings/3A Remote Control Interface RS232/RS422 Simulation Interface Reflective Memory Other The remote control interface can be adjusted by user’s requirements；

The quantity of conductive slip ring can be adjusted by user’s requirements；

The dimension of table can be adjusted by user’s requirements；

Technical parameter can be adjusted by user’s requirements.
