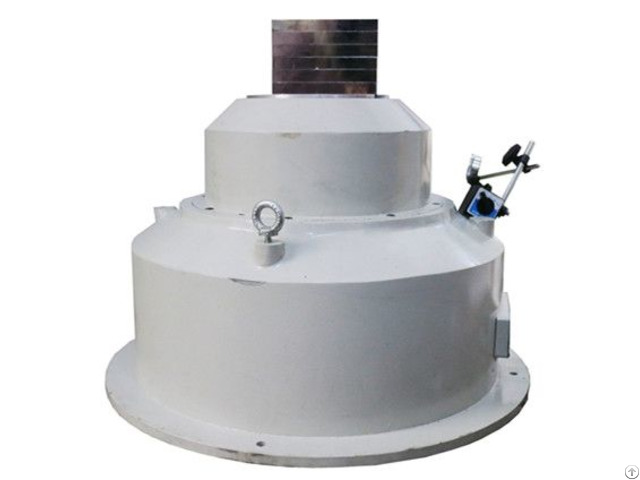

Angular Vibration Generator - China
price: 1.00 Dollar US$
Angular Vibration Generator Function · This device has the function of sinusoidal angular vibration with high frequency and large angular acceleration, it can increase the function of position and movement rate.
It provides the benchmark of precise sinusoidal angular motion for tested load and used for dynamic testing and calibration of inertial original components, inertial navigation systems.
Payload Weight 2-10kg Load Inertia 0.1kgm2 Dimension of Table Surface 200mm Material of The Table Super-hard Aluminum Table flatness 0.01mm Table Wobble 0.01mm Motion Error of Main Axis ±2″ Angular freedom Continuous Peak Angular Acceleration 20000°/s2 Sinusoidal Vibration Frequency 0.1Hz～200Hz Harmonic Distortion ≤2% Position Accuracy ±3″ Position Resolution 0.36″ Rate Range ±0.005°/s~±400°/s Rate Resolution 0.001°/s Conductive Slipring 40 rings/3A Remote Control Interface RS232/RS422 Other The remote control interface can be adjusted by user’s requirements； The quantity of conductive slip ring can be adjusted by user’s requirements；
The dimension of table can be adjusted by user’s requirements；
Technical parameter can be adjusted by user’s requirements.
Company Contact:
- Posted By: Wuhan Skyline Control Co., Ltd.
- Phone: 13343458811
- Address: Building A1, Hangyu Area 2, Wuhan University Science Park, East Lake High-Tech Development Zone, Wuh, wuhan , hubei , China
- Email:
- Website: http://www.skyline-control.com/
Published date: July 2, 2019
- Business Description: Skyline is a provider of systems and solutions in inertial navigation, stabilization, guidance and control for defense, simulation system integration, motion simulation equipment, industrial automation system device, hydraulic and pneumatic mechanical components, aircraft ground detection instruments, computer software and hardware, special aerospace equipment applications.
