  • V9000 Series Test Modules - China

    price: contact company for price

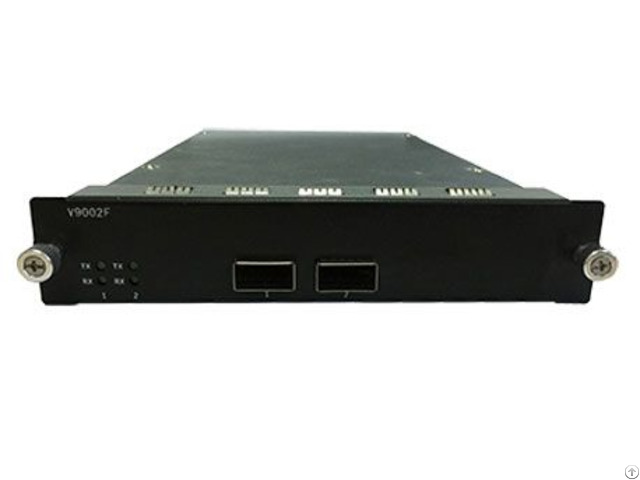

    V9000 Series Test Modules

    Comprehensive Ethernet Tester

    Network Testing Device V9000 Series Test Modules deliver complete network protocols testing and emulating functionality on BigTao series test platform.

    V9000 Series may meet the test requirements of all kinds of networking devices in each stage of R & D, experiment, quality control, performance monitoringand productionline.

    With support of larger number of streams, higher port density and larger traffic capture memoryV9000 Series offer a best cost-effectivetest solution.

    V9000 Series support a full IPv4/IPv6 stack.

    Each port can generate 512 streams with up to 4 variable domains per stream and simulate hundreds of thousands of interfaces and tens of millionsof realistic connections.

    With plenty of protocol templates and customizable packet payload and rate, V9000 Series can provide complex protocoltest and emulation.

    V9000 Series are supported in high performance chassis of BigTao200, BigTao6000 and BigTao12000, providing accuratechassis-to-chasnc hronization.

    KEY FEATURES

    Support QSFP+ on 40G ports

    Support line-rate traffic generating and analysis

    Integrated IPv4 and IPv6 stack, support layer 2-3 network testing

    Support a variety of protocols emulation including OSPF, ISIS, BGP, IGMP, PPPoE, RIPv2, RIPng, etc.



    Accurate and dynamic data rate regulation based on port and stream

    Line-rate traffic capture with support of massage editing, filtering and searching

    Embedded PC running Windows XP for separately operating

    Multi-user login with easy remote access via a network

    Support customized error packet generation

    Graphical user interface for configuration, data capture and real-time analysis

    Test suit based on RFC2544, RFC2889 and RFC3918

    SPECIFICATION LIST

    Model V9002F V9002A

    Port Number 2 x 100G Port 2 x 100G Port + 12 x10G

    Port Rate 100G/40G 100G/40G, 10G/100G(Combo)

    Physical Status Indicators: Tx/Rx

    Weight: 0.5kg

    Peak power requirement: 100W Max Status Indicators: Tx/Rx

    Weight: 0.6kg

    Size: 271mm x 35.5mm x 180mm

    Peak power requirement: 100W Max

    Traffic Generation Traffic generating based on port and stream, per port have up to 256 different streams

    Each stream provide up to 4 saltus step domain

    Accurate data rate regulation based on port and stream, support dynamic data rate regulation

    Each stream is capable of generating packets of IPv4, IPv6, TCP, UDP, TCP6, UDP6, Ping, IGMP, ARP, etc.

    Each stream support multiple levels of VLAN and MPLS

    Signature block is optional in each stream

    Each stream supports user-defined packets

    Traffic Statistics Statistics results can be displayed in the form of data table and chart

    Each port can receive up to 1024 streams

    Traffic statistics based on streams:

    TX/RX frame count, TX/RX rate count, RX frame Sequence miss count, RX frame IP payload check errors count, Maximum, minimum and average SF latency count, Maximum, minimum and average CT latency

    Traffic statistics based on ports:

    TX/RX frame count, TX/RX stream count, TX/RX rate count, RX frame IP header checksum errors count, RX frame FCS errors count, frames through user-defined filters count

    Traffic Capture RX data frame capture

    TX/RX control frame capture

    Frame capture based on filter templet

    Decode hundreds of protocols

    Support captured frame search according to specific conditions

    Intuitive display of frames’ features such as source IP address, destination IP address, type of protocol and etc.

    Protocol Emulation Integrated IPv4 and IPv6 dual stack, support ARP, NDP, Ping

    Each port can simulate tens of thousands of interfaces and support sub-interfaces

    Each port can simulate tens of millions of realistic connections

    Protocol emulation on RIPv2, RIPng, OSPFv2, OSPFv3, ISISv4, ISISv6, BGP4, PPPoE Client, DHCP Client, IGMPv2, IGMPv3, GMRP, 802.1x, LDP and 802.3ah

    Transmitting mode Continuous, Single burst, Multi burst, Time burst and Serialized

    Software Support TeleExplorer test system, Test suit of RFC 2544/RFC 2889/RFC3918, TeleATT – automated Test system for product line

    Others Easy-to-use graphical user interface

    Support C++, C# and TCL API for customizing tests


    Company Contact:


    • Phone: 86-10-82349338

    • Address: 101, Building No.5, No.8 Chuangye Road, Haidian District, Beijing , Beijing , China

    • Email: Email


    Published date: July 10, 2018

    • Business Description: Beijing Xinertel Technology Co., Ltd. was established in 2007 - As a high-tech enterprise we have been constantly concentrating on the field of network communications testing and committed to providing high-quality testing equipment with attractive price, customized test solutions and excellent services.

      We commit ourselves to supply our customers with more benefits by providing cost-effective products, personalized services and shorter delivery.

      Since established in 2007, we constantly focus on the field of network communications testing with attractive price, high quality and excellent services.

      All our technical backbone staff have more than 10 years' experience in communications test products design, implementation and verification.

      As a result of continually pursuing advances in the testing technology, we have delivered iTester series, BigTao series and Tlite network tester in succession.
