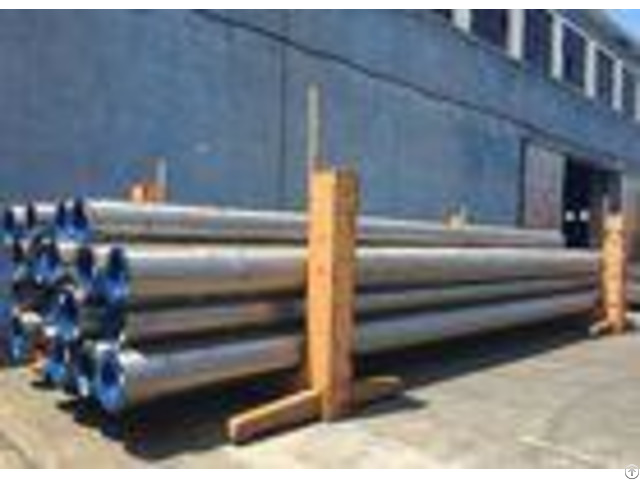

Seamless Alloy Steel Astm A335 Pipe For High Temperature Service - China
price: contact company for price
Seamless Alloy Steel ASTM A335 Pipe For High Temperature Service ASTM A335 is the standard specification for seamless ferritic alloy steel pipe for high temperature service.
P5, P9, P11, P22, P91, and P92 are most widely utilized in practice.
The specification covers nominal wall and minimum wall chrome-molybdenum ( also known as Cr-Mo, or Cr-Moly) alloy steel pipe intended for high-temperature application.
Pipe ordered to this specification shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding.
ASTM A335 P11, P22, P91 and P92 are commonly used in power plants and chemical-petrochemical industry, while P9 and P5 are mainly used in petroleum refineries.
XOOS supplies ASTM A335 Cr-Mo alloy steel seamless pipes sized from 1/2 to 54 ranging in wall thickness from SCH10 to 140mm.
1 - Standards: ASTM A335 Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service 2 - Application: For the low and medium pressure boiler and steam header pipes; For the high-pressure boiler and steam pipes, and the petrochemical industry pipes; Power plant; Chemical Fertilizer; Petrochemicals; Offshore Oils; Gas Productions; Refineries and etc.
3 - Ordering Information Quantity (feet, meters, or number of lengths), Name of material (seamless alloy steel pipe), Grade (P1, P2, P5, P11, P12, P22, P91, and P92), Manufacture (hot-finished or cold-drawn), Size using one of the following: NPS and schedule number; Outside diameter and nominal wall thickness; Outsider diameter and minimum wall thickness; Inside diameter and nominal wall thickness; Inside Diameter and minimum wall thickness.
Length (specific or random) End finish (plain end or bevel end) 4 - Chemical Requirements - - - - Chemical Requirements | Grade | UNS Designation | Composition, % | C | Mn | P max | S max | Si | Cr | Mo | Others | P1 | K11522 | 0.10-0.20 | 0.30-0.80 | 0.025 | 0.025 | 0.10-0.50 | .
| 0.44-0.65 | .
| P2 | K11547 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | .
| P5 | K41545 | 0.15max | 0.30-0.60 | 0.025 | 0.025 | 0.50max | 4.00-6.00 | 0.45-0.65 | .
| P9 | S50400 | 0.15max | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 | .
| P11 | K11597 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | .
| P12 | K11562 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 max | 0.80-1.25 | 0.44-0.65 | .
| P22 | K21590 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 max | 1.90-2.60 | 0.87-1.13 | .
| P91 | K91560 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 8.00-9.50 | 0.85-1.05 | V 0.18-0.25 | N 0.030-0.070 | Ni 0.40max | Al 0.02max | Cb 0.06-0.10 | Ti 0.01 max | Zr 0.01max | P92 | K92460 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.50 max | 8.50-9.50 | 0.30-0.60 | V 0.15-0.25 | N 0.03-0.07 | Ni 0.40 max | Al 0.02 max | Cb 0.04-0.09 | W 1.5-2.00 | B 0.001-0.006 | Ti 0.01 max | Zr 0.01 max | - - - - 5 - Available Size Range - - - - OD | Thickness | mm | inch | mm | SCH | 21.3~1422 | 1/2''~ 56'' | 2.11~140 | SCH10 | *If the steel grades and size you are looking for are not listed above, please contact us for further information.
| - - - - 6 - Tensile Requirements - - - - Tensile Requirements | Grade | | P1, P2 | P12 | P23 | P91 | P92, P911 P36 Class 1 | P122 | P36 Class 2 | All others | Tensile Strength, min: | | | | | | | | | ksi | 55 | 60 | 74 | 85 | 90 | 90 | 95.5 | 60 | Mpa | 380 | 415 | 510 | 585 | 620 | 620 | 660 | 415 | Yiled Strength, min: | | | | | | | | | ksi | 30 | 32 | 58 | 60 | 64 | 58 | 66.5 | 30 | MPa | 205 | 220 | 400 | 415 | 440 | 400 | 460 | 205 | - - - -
Company Contact:
- Posted By: Xi an Overseas Oilfield Services Co., Ltd.
- Phone: 86-29-89584808
- Address: C-1102, Van Metropolis, No. 35, Tangyan Road, Xi'an, China, Xi an, shanxi , China
- Email:
Published date: March 6, 2018
- Business Description: Since 2008, XOOS has been engaged in seamless alloy steel pipe, carbon steel pipe, and stainless steel pipe distrubtion industry.
With the support of our strategic partners like Chengde Group, Hengyang Group, TPCO, Baosteel, Jiuli, etc.
