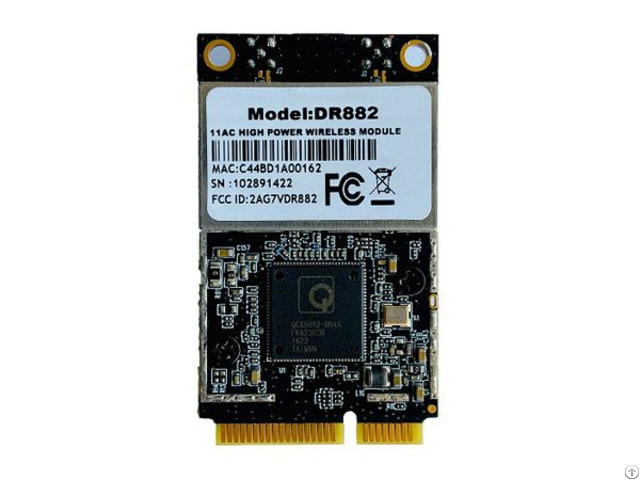

Dr882 Radio Card Support 11ac An Wifi - China
price: 200.00 Dollar US$
Featuring with industrial-grade Atheros’s QCA9882 chipset
Integrated with 2x 2 5G high power Radio Card
4.940GHz to 5.825GHz Frequency Range
2 x 5G MMCX Connectors
20MHz/40MHz/80MHz Bandwidth
Support 11AC/AN
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Absolute Maximum Rating Parameter Rating Unit
Supply Voltage 3.3V(MINIPCIE) V
Operating Temperature Range -40 to +60 ºC
Storage Temperature Range -65 to +105 ºC
Operating Humidity Range 5 to +95 (non-condensing) %
Storage Humidity Range 0 to +90 (non-condensing) % Hardware Specifications Symbol Parameter
CPU QCA9882
Antenna Connector 2 x 5G MMCX connectors
ROHS Compliance YES
Dimension 50mm x 30mm x 16mm Radio TX Specifications Operating Mode Data Rate Power Tolerance 1 Chain 2 Chains 802.11a 6 Mbps 25dBm 28dbm ±2dB 54 Mbps 21dBm 24dbm ±2dB
802.11n HT20 MCS0, MCS8 25dBm 28dbm ±2dB MCS7, MCS15 20dBm 23dbm ±2dB
802.11n HT40 MCS0, MCS8 25dBm 28dbm ±2dB MCS7, MCS15 20dBm 23dbm ±2dB
802.11ac MCS0, MCS10, MCS20 25dBm 28dbm ±2dB MCS9, MCS19, MCS29 17dBm 20dbm ±2dB
Company Contact:
- Posted By: Wallys Communications (Suzhou) Co., LTD
- Phone: 17366272175
- Address: 116 ChengYang Road, XiangCheng District, SuZhou City, JiangSu Province, China
- Email:
- Website: https://www.wallystech.com/
Published date: January 11, 2022
- Business Description: The company utilizes its own professional knowledge and the top research and development team unceasingly breaks through, we have the hardware, the software, the RF, the antenna, the enclosure and so on design ability.
To provide customers with customized services, products from Design - Test -Certification - Production of one-stop convenient services.
