  • Card Or Coin Operated Access Control System Flap Turnstile Gate - China

    price: contact company for price

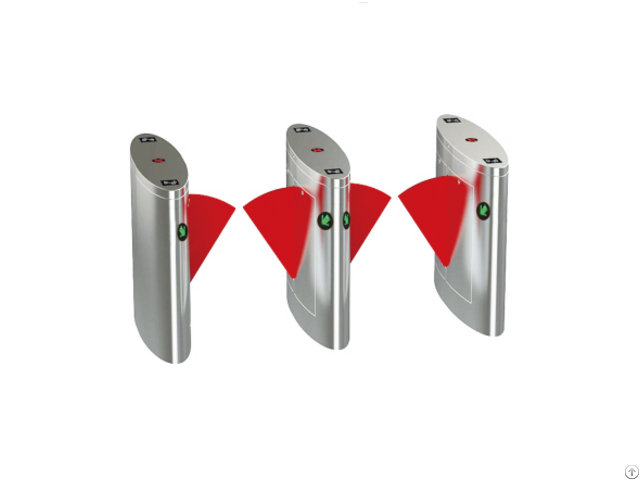

    Card or coin operated access control system Flap turnstile gate

    Material of housing 304 Stainless steel

    Dimension of Housing 1200*300*980 mm

    Length of Pole(out of housing) 490mm

    Net Weight 50KG

    Max load-bearing of pole 80kg

    Driving Force of Pole 3kg

    Power Supply AC220V±10%, 50HZ;AC110V±10%, 60HZ

    Working Voltage of motor DC12V

    Rated Power 50W 36W

    Mechanism Motomatic mechanism Automatic mechanism

    Input Interface DC 12V electrical level signal, more than 1oms, or DC 12V impulse signal driving current.

    more than 10ms Dry contact with the pulse between 200ms and 500ms

    Transit speed 25-32 persons/min

    Working Temperature -25℃C~+55°C

    Working environment Indoor/ Outdoor

    Relative humidity <95%, no condensation

    Functions& Features of turnstile gate with card reader

    1).

    Card reader available, support WEIGNAD 26/34 communication card reader

    2).

    Bi-directional pass/any single direction pass(adjustable)

    3).

    Arm auto-drop when power off and auto rise up when power on and auto stop on obstacle

    4).

    Traffic light indicator/ Pass direction indication

    5).

    Alarm light available(optional function)/Remote control available (optional function)/ Counter available (optional function)

    6).

    RS232 socket available which can connect to computer.

    It can also connect to computer by Internet LAN socket (Optional function)

    Performance and Features: 1 - Fault detection and alarm functions, easy to use and maintenance.

    2 - The running status can be programmed and controlled with the built-in keyboard on the main board.

    3 - Mechanical antipinch function.

    If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)

    4 - Anti-breakthrough function.

    The gate is locked automatically until opening signal received.

    5 - Synchronization functions (for dual gate equipment).

    6 - Automatic reset function.

    Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.

    7 - Gate can be set as normally open or normally closed.

    8 - Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.

    9 - Direction can be set as single-direction or bi-direction.

    10 - LED direction indicator.

    11 - Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

    12 - Alarm function, in case of illegal intrusion and reverse intrusion, etc.

    13 - Counter function (optional).

    14 - Support infrared photocell for anti-pinch and reset function.


    Company Contact:


    • Phone: 86 755 2761 2066

    • Address: Building D, Anxia Science Park, Waihuan Road, Shiyan Street, Bao'an, Shenzhen , Guangdong , China

    • Email: Email


    Published date: January 5, 2021

    • Business Description: Shenzhen Anxia Technology Co., Ltd. was founded in 2008, we specialized in Turnstile gate ,Access control system, parking system, face recognition and bar code scanner for more than 12 years, we have rich experience on security system of manufacturing and trading and win a good reputation from home and aboard, Our factory located in Shenzhen city, China has passed CE and IOS9000, we are a direct factory supplier, with unbeatable high quality and cost performance.

      We have our own R&D team, being able to provide OEM service based on customer's requirement.

      All our products have 1 year warranty,during warranty period, the parts are free to exchange or repair and free consultation service.

      We gladly provide design assistance, offer free quotes and can help fulfill all of your security needs.

      Please feel free to contact us for expert advice, sales support, and industry-leading customer service.
