24v 15w Mini Led Driver - China

24v 15W mini LED driver china LED driver for sale Mini LED driver supplier

24v 15w mini small led driver constant voltage IP20 for indoor led light 3 years warranty ce rohs approved

24vdc 15W IP20 constant voltage mini small LED driver

Mini LED driver Specification:

Part Number OTM-SS15-24

Power 15W

Input voltage 100-240Vac

Output voltage 24Vdc

Output current 0.625A

Dimmable Non dimmable

IP grade IP20

PF >0.6

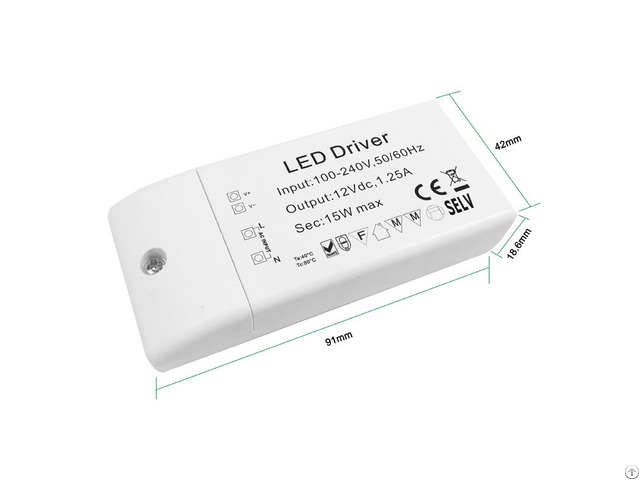

Dimension 91*42*18.6mm

Weight 0.05kg

Pcs/carton 200pcs/carton

Certificate CE, RoHS, SAA, ETL, CB, UL standard

Warranty 3 years warranty

Label We can print your logo free on the led driver Feature of OTTIMA 15w mini LED driver

1 - Mini size

2 - Power 3w-30w

3 - Output voltage: 12v or 24v

4 - Input voltage 100-240Vac

5 - IP20 fireproof plastic housing

6 - Short circuit, over temperature, over current, over load, over voltage protection

7 - 3 years warranty

8 - Application: LED tape, led strip, led fixture, LED neon, LED mirror light, LED cabinet light.

9 - Add plug and connector

10 - Certificate: CE Rohs, saa, ETL

Mini led driver is so popular for the install room limited project, it can save the install room and it can also save the shipping fee due to small size and less weight.

The power max is 30w for this mini led driver.

3w 6w 12w 15w 24w 30w are generally used for LED light, such as OTTIMA is a high-tech enterprise specializing in the R&D, manufacture and export of DALI LED driver, 5 in 1 dimmable led driver and Junction box LED driver supply.
