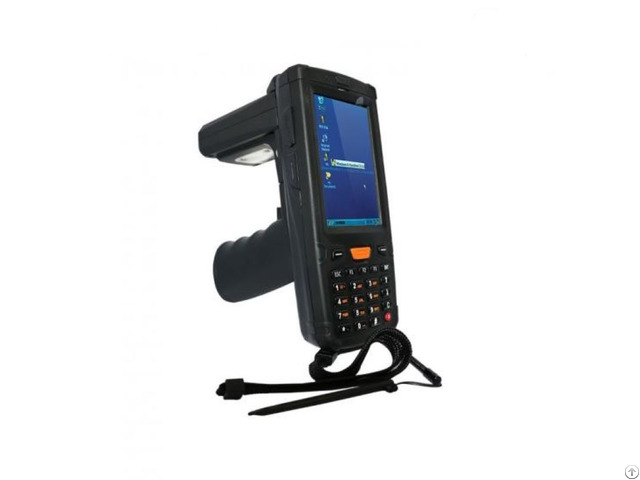

Win Ce Handheld Terminal Portable Barcode Scanner Wifi Gsm Bluetooth Connection - China

Win CE Handheld Terminal Portable Barcode Scanner WIFI GSM Bluetooth Connection

Windows Handheld Terminal Basic Parameters

OS Microsoft Windows CE 6.0

Processor Cortex-A8 dominant frequency 1.0 GHz

RAM 512MB

System Software Development Microsoft Windows CE SDK

Application Environment Supports language C + +/C.

NET/VB.

NET Visual Studio 2005/2008 or later

Version

Expansion Micro SD (TF) card scalable up to 32G

NFC Reader Barcode Scanner Keypad 24 physical keyboards (including number keys, function keys and power keys), and 2 custom function side presses Key

Card slot Micro SD (TF) card × 1, SIM card × 1, PSAM card × 1

Audio Speaker × 1, microphone × 1, earpiece × 1

Dimentions 156mm (length) × 72mm (width) × 31mm (thickness)

Weight( with battery) 290g (including 4000mAh battery)

Speaker 1.5 W output, 90dB external volume, easy to deal with noisy environment

Vibration Prompt Support

Camera

Camera 5 megapixel HD camera

Focus mode auto-focus

Flash 512MB

Display

Resolution 320 × 480

Touch Panel 3.5 "High Definition Highlight IPS Resistor Touch Screen

Power

Battery 3.8 V 4000mAh Rechargeable Lithium Polymer Battery

Interface USB 2.0 interface × 1, multi-function contact interface (support USB, RS252, RS485 and other data

Transmission mode) × 1

Communication

Bluetooth Bluetooth 2.0 + EDR support

WLAN IEEE802.11 b/g

RFID 13.56 MHz, ISO/IEC 14443A/B, ISO/IEC 15693, Mifare

GPS Positioning accuracy is less than 10m and rate accuracy is less than 0.01 m/s

Ourtdoor Handheld Barcode Scanner Infrared communication It supports reading infrared smart meter data and is applied to power meter reading system.

GPRS Supports GPRS data transmission

Performance

Operation Temperature -10°C~+50°C

Storage Temperature -25℃ ~+70℃

Relative humidity 5% RH ~ 90% RH (no condensation)

Protection Level IP65, 6 sides can withstand falling from 1.5 m height to hard ground within the operating temperature range.

Shock

Standard Accessories 1 charger, 1 polymer lithium battery, 1 USB cable, 1 software CD, wrist, 1 with + stylus

ESD Certificate Extensibility

Barcode Scanner One-dimensional barcode, 2D barcode

PSAM Support

Sensor

Gstartgroup company Package Details

(1) Professional export carton with protective foam, along with standard accessories per set.

(2) 5-layer quality carton

(3) Packed in conventional standards for every piece

(4) According to client’s requirements

(5) Standard accessories: battery1pc, usb data cable 1pc, charger1pc, protection cover 1pc

(6) 1pc weight 1kg – 2kg with package.
