Utsource Electronic Components 30j124 - China

price: 0.38 Dollar US$

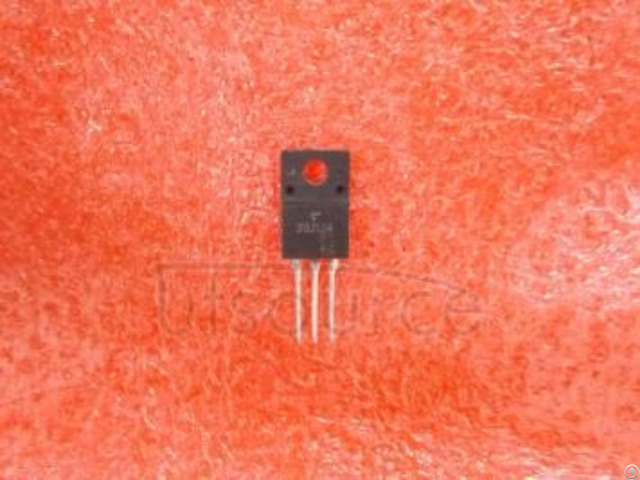

Utsource Electronic Components 30j124

Products Photos Catalog Utsource Electronic Photos Catalog

1 - Description

The 30J124 Transil series has been designed to protect sensitive equipment against surges below 3000 W (10/1000 μs) and against electro-static discharges according to IEC 61000-4-2, and MIL STD 883, method 3015 - The Planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.

SMC30J are packaged in SMC (SMC footprint in accordance with IPC 7531 standard).

2 - Features

> Peak pulse power: – 3000 W (10/1000 μs)

> Stand off voltage range: from 5 V to 33 V

> Unidirectional and bidirectional types

> Low leakage current: 0.2 μA

> Operating Tj max: 150 °C

> High power capability at Tj max: – 2200 W (10/1000 μs)

> JEDEC registered package outline
