Wurth Elektronik 74990100011a 1 Port 100 Base T Through Hole Rj45 Network Connector - China

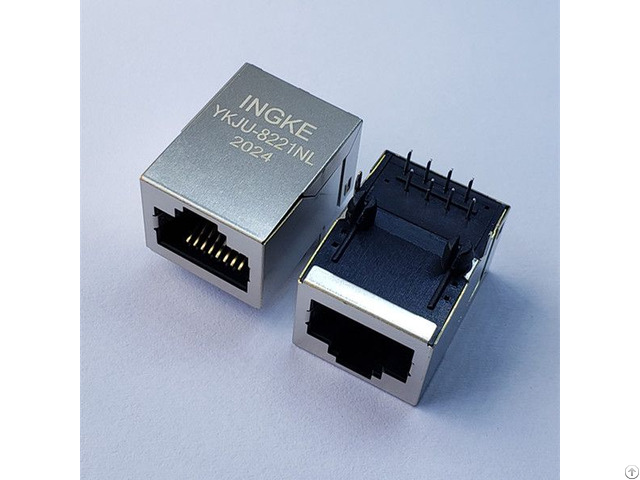

INGKE YKJU-8221NL Direct Substitute 74990100011A 1 Port 100 Base-T Through Hole RJ45 Network Connector Part Number: 74990100011A Made in China: YKJU-8221NL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Product Category: Modular Connectors / Ethernet Connectors Packaging: Tray Connector Type: RJ45 Number of Ports: 1 Number of Rows: 1 Applications: 10/100 Base-T, AutoMDIX Mounting Type: Through Hole Orientation: 90° Angle (Right) Termination: Solder LED Color: Does Not Contain LED Number of Cores per Jack: 4 Shielding: Shielded Features: Board Guide Tab Direction: Up Contact Material: Phosphor Bronze Contact Finish: Gold Operating Temperature: -40℃~85℃ Contact Finish Thickness: 30µin (0.76µm) Flammability Rating: UL 94 V-0 Shield Material: Copper Ally Housing Material: Thermoplastic Ingke Technology Mass production of the following models;

7499211003 7499411001 7499111614 7499311001 7499511001 7499511611 74990110010 MIC24013-0102T-LF3 MIC24111-0108T-LF3 MIC24112-0101T-LF3 MIC2411D-0117T-LF3 MIC24120-5101W-LF3 MIC24122-5101W-LF3 MIC24210-0101T-LF3 MIC24213-5101T-LF3 MIC24310-0101T-LF3 MIC24311-0101T-LF3 MIC24510-0101W-LF3 MIC24611-5104T-LF3 MIC24713-0101W-LF3 7499110123 74990110030 74990111211 7499031001A 7498011002 7499011002A 7499111613 7497010211A 74990110013 7499210001A 7499021121 7499111614A 7499111005 7499511001A 7499011122A 7499211123A 7499031120A 7498011121 7499031211

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
